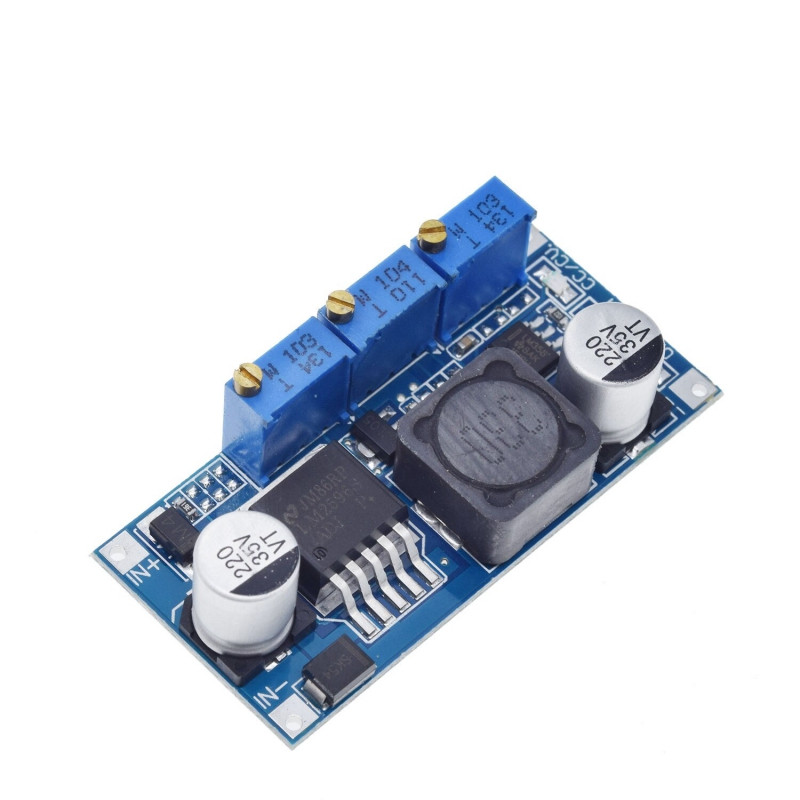

ماژول تغذیه LM2596 با کنترل جریانHW-155
Module Properties: non-isolated constant current & voltage module
Rectification: non-synchronous rectification
Input voltage: 7V-35V
Output Voltage: 1.25V-30V
Output current: 3A maximum adjustable
Conversion efficiency: 92% (maximum)
Switching frequency: 150KHz
Output ripple: 50mV (maximum) 20M-bandwidth
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Operating temperature: -40 ℃ to +85 ℃
Size: 48 * 23 * 14 mm ( 1 7/8 x 29/32 x 9/16 in )
