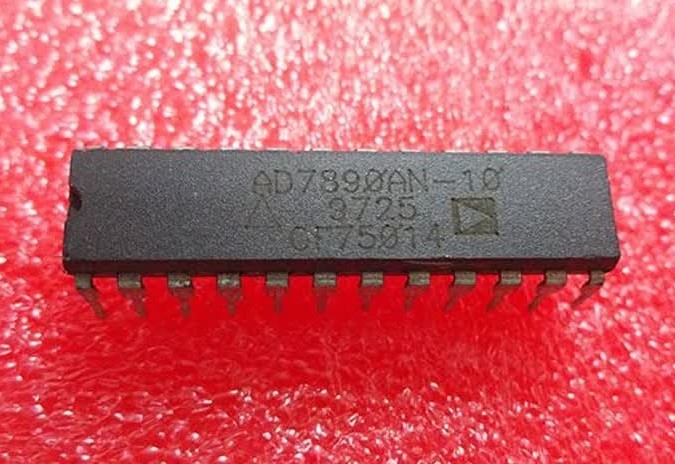

8channel 12bit SPI ADC Converter
Manufacturer:Analog Devices Inc.
Product Category:Data Acquisition ADCs/DACs -Specialised
Series:AD7890
Mounting Style:Through Hole
Package/Case:PDIP-24
Product:Data Acquisition Systems
Type:High Speed ADC
Resolution:12 bit
Number of Channels:8 Channel
Operating Supply Voltage:5 V
MinimumOperating Temperature:- 40C
Maximum Operating Temperature:+ 85 C
Packaging:Tube
Analogue Supply Voltage:5V
Architecture:SAR
Brand:Analog Devices
Digital Supply Voltage:5 V
DNL -Differential Nonlinearity:+/- 1 LSB
Gain Error:+/- 2.5 LSB
Height:3.3 mmI
NL – Integral Nonlinearity:+/- 1 LSB
Input Type:Single-Ended
Input Voltage:+/- 10 V
Interface Type:Serial
Length:31.75 mm
Number of ADC Inputs:8 Input
Number of Converters:1Converter
Output Type:CMOS/TTLPd –
Power Dissipation:50 mW
Product Type:Data Acquisition ADCs/DACs -Specialized
Reference Type:External,
InternalSampling Rate:117 kS/sSNR –
Signal to Noise Ratio:70 dB
Factory Pack Quantity:15
Subcategory:Data Converter ICs
Supply Voltage – Max:5 V
Width:6.35 mm
Unit Weight:3,740 g
