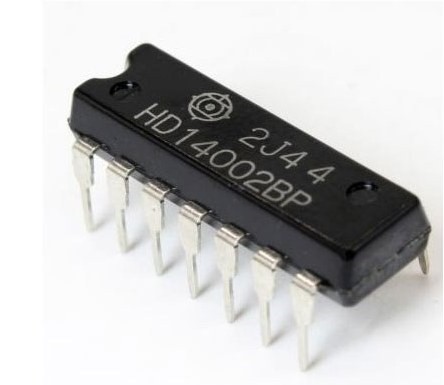

DUAL 4-INPUT NOR GATE-CMOS
Product Category: Logic Gates
Manufacturer: HITACHI
RoHS: RoHS Compliant Details
Product: Single-Function Gate
Logic Function: NOR
Logic Family: CD4000
Number of Gates: 2 Gate
Number of Input Lines: 4 Input
Number of Output Lines: 1 Output
High Level Output Current: – 1.5 mA
Low Level Output Current: 1.5 mA
Propagation Delay Time: 120 ns
Supply Voltage – Max: 18 V
Supply Voltage – Min: 3 V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-14
Packaging: Tube
Brand: HITACHI
Function: Dual 4-Input
Height: 4.57 mm
Input Type: CMOS
Length: 19.3 mm
Logic Type: 4-Input NOR
Minimum Operating Temperature: – 55 C
Number of Bits: 2 bit
Operating Supply Current: 15 uA
Operating Supply Voltage: 10 V
Operating Temperature Range: – 55 C to + 125 C
Output Type: CMOS
Pd – Power Dissipation: 500 mW
Quiescent Current: 20 nA
Series: CD4002B,HCF4002B,HEF4002B,TC4002B
Factory Pack Quantity: 25
Width: 6.35 mm
Unit Weight: 1 g
آی سی 4002 شامل 2 گیت NOR چهار ورودی می باشد.
