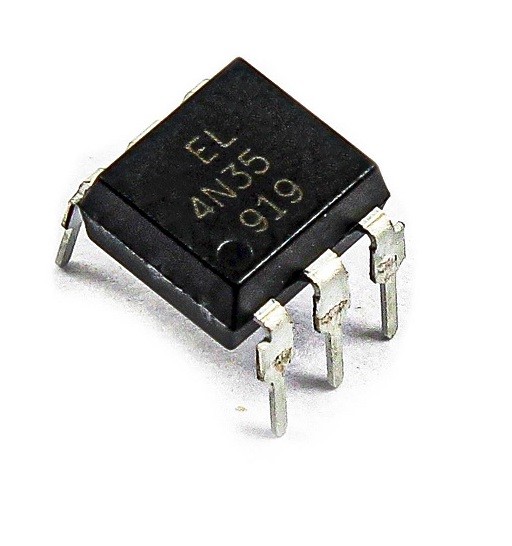

6PIN- Ac input Type Photocoupler,4N35 اپتو کوپلر
Product Category: Transistor Output Optocouplers
Manufacturer: Fairchild Semiconductor
RoHS: RoHS Compliant Details
Package/Case: PDIP-6
Output Type: NPN Phototransistor
Number of Channels: 1 Channel
If – Forward Current: 60 mA
Maximum Collector Emitter Voltage: 30 V
Isolation Voltage: 7500 Vrms
Maximum Collector Emitter Saturation Voltage: 0.3 V
Vf – Forward Voltage: 1.5 V
Vr – Reverse Voltage: 6 V
Pd – Power Dissipation: 250 mW
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 55 C
Series: 4N35M
Packaging: Bulk
Brand: Fairchild Semiconductor
Collector-Emitter Breakdown Voltage: 100 V
Configuration: 1 Channel
Height: 5.08 mm
Length: 8.89 mm
Factory Pack Quantity: 1000
Width: 6.6 mm
Unit Weight: 855 mg
اپتو کوپلر ، فوتو کوپلر ، ایزولاتور ،PHOTOCUPLER
