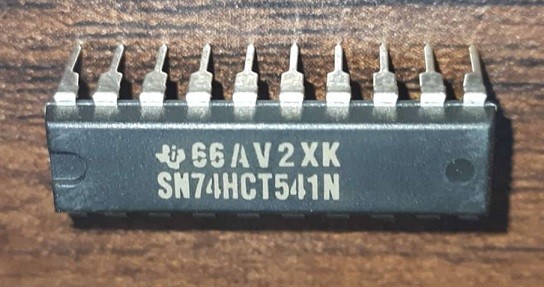

TTL 74541-OCTAL BUFFERS AND LINE DRIVERS WITH 3 STATE OUTPUTS
Product Category: Buffers & Line Drivers
Manufacturer: NXP
RoHS: RoHS Compliant Details
Number of Input Lines: 8 Input
Number of Output Lines: 8 Output
Polarity: Non-Inverting
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: DIP-20 (SOT-146)
Packaging: Tube
Brand: NXP Semiconductors
Function: Buffer/Line Driver
Height: 3.2 mm (Max)
High Level Output Current: – 7.8 mA
Input Signal Type: Single-Ended
Length: 26.92 mm (Max)
Logic Family: HC
Logic Type: CMOS
Low Level Output Current: 7.8 mA
Minimum Operating Temperature: – 40 C
Number of Channels: 8
Operating Supply Voltage: 5 V
Output Type: 3-State
Pd – Power Dissipation: 750 mW
Propagation Delay Time: 35 ns
Factory Pack Quantity: 18
Technology: CMOS
Width: 6.4 mm (Max)
آی سی 74HC541 یک بافر هشتایی غیر معکوس کننده خطی؛ با خروجی سه حالته است.
