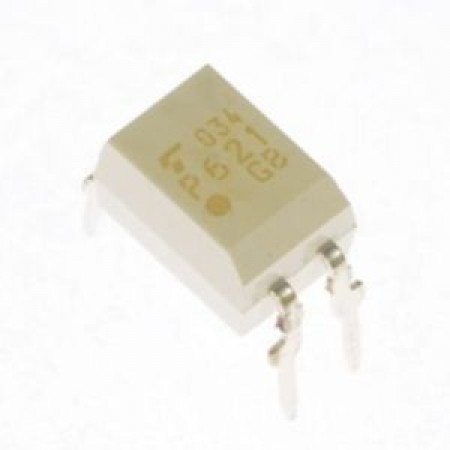

اپتوکوپلر تک 4 پايه AC INPUT
Product Category: Transistor Output Optocouplers
Manufacturer: Toshiba
RoHS: RoHS Compliant Details
Package/Case: PDIP-4
Output Type: NPN Phototransistor
Number of Channels: 1 Channel
If – Forward Current: 16 mA
Maximum Collector Emitter Voltage: 55 V
Maximum Collector Current: 10 mA
Isolation Voltage: 5000 Vrms
Maximum Collector Emitter Saturation Voltage: 0.4 V
Vf – Forward Voltage: 1.3 V
Vr – Reverse Voltage: 5 V
Pd – Power Dissipation: 250 mW
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 55 C
Series: TLP621
Packaging: Bulk
Brand: Toshiba
Collector-Emitter Breakdown Voltage: 55 V
Current Transfer Ratio: 50 % to 600 %
Height: 3.65 mm
Length: 4.58 mm
Mounting Style: Through Hole
Reference Voltage: 5 V
Factory Pack Quantity: 3000
Width: 6.4 mm
اپتو کوپلر ، فوتو کوپلر ، ایزولاتور ،PHOTOCUPLER
