QUADRUPLE 3-INPUT NOR INVERYER -CMOS
Product Category: Logic Gates
Manufacturer: UNKNOWN
Logic Function: NOR & NOT Gates
Logic Family: HEF4000
Number of Gates: 2 Gate
Number of Input Lines: 3 Input
Number of Output Lines: 1 Output
High Level Output Current: – 3.6 mA
Low Level Output Current: 3.6 mA
Propagation Delay Time: 140 ns at 5 V
Supply Voltage – Max: 15 V
Supply Voltage – Min: 3 V
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package/Case: PDIP-14
Packaging: Bulk
Brand: NXP Semiconductors
Function: NOR/Inverter
Height: 3.2 mm
Length: 19.5 mm
Logic Type: CMOS
Minimum Operating Temperature: – 40 C
Operating Supply Voltage: 3.3 V, 5 V, 9 V, 12 V
Width: 6.48 mm
Unit Weight: 1,620 g

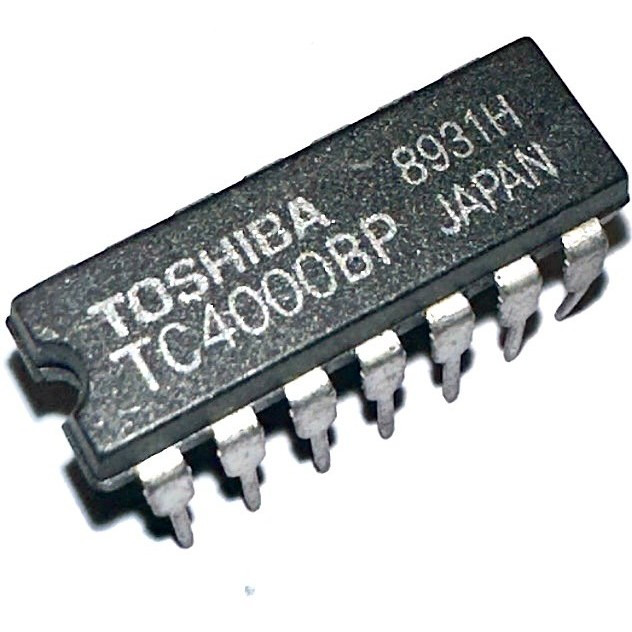

CD4000B , TC4000B , HEF4000B , HCF4000B
آی سی 4000 شامل 2 گیت NOR سه ورودی و یک بافر معکوس کننده می باشد.
