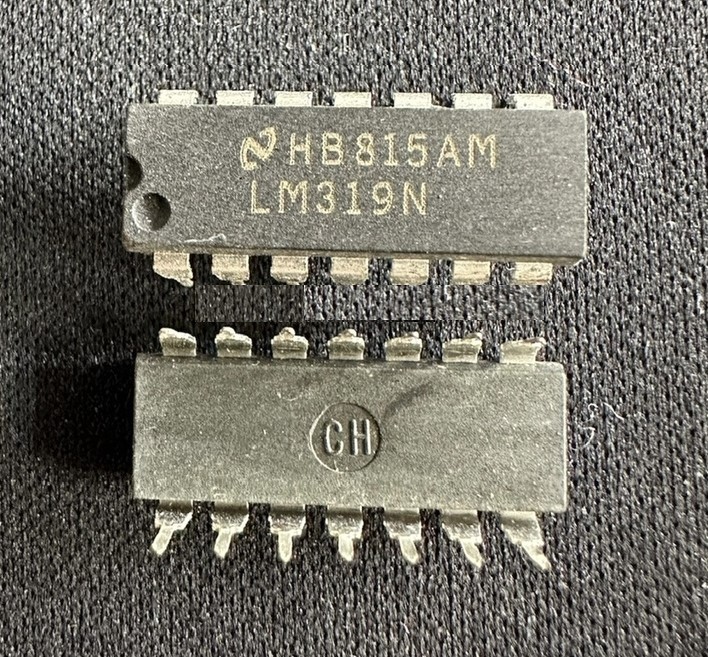

LM319N – DIP

Product Category: Analog Comparators
Manufacturer:National
RoHS: RoHS Compliant Details
Mounting Style: Through Hole
Package/Case: DIP-14
Number of Channels: 2 Channel
Output Type: Open Collector
Output Current per Channel: 25 mA
Ib – Input Bias Current: 1 uA
Vos – Input Offset Voltage: 8 mV
Supply Voltage – Max: 36 V
Supply Voltage – Min: +/- 15 V
Operating Supply Current: 12.5 mA
Response Time: 80 ns
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
Packaging: Tube
Brand: Fairchild Semiconductor
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
GBP – Gain Bandwidth Product: –
Height: 3.56 mm (Max)
Ios – Input Offset Current: 200 nA
Length: 19.56 mm (Max)
Maximum Dual Supply Voltage: +/- 15 V
Minimum Dual Supply Voltage: +/- 2.5 V
Operating Supply Voltage: 36 V
Pd – Power Dissipation: 500 mW
Product: Analog Comparators
Reference Voltage: No
Series: LM319
Shutdown: No Shutdown
Factory Pack Quantity: 1500
Supply Type: Single, Dual
Technology: Bipolar
Type: High Speed Comparator
Vcm – Common Mode Voltage: Negative Rail 1 V to Positive Rail 3 V
Voltage Gain dB: 92.04 dB
Width: 6.6 mm (Max)
Unit Weight: 1,620 g
آی سی LM319 یک مقایسه گر آنالوگ 2 کانال می باشد.
