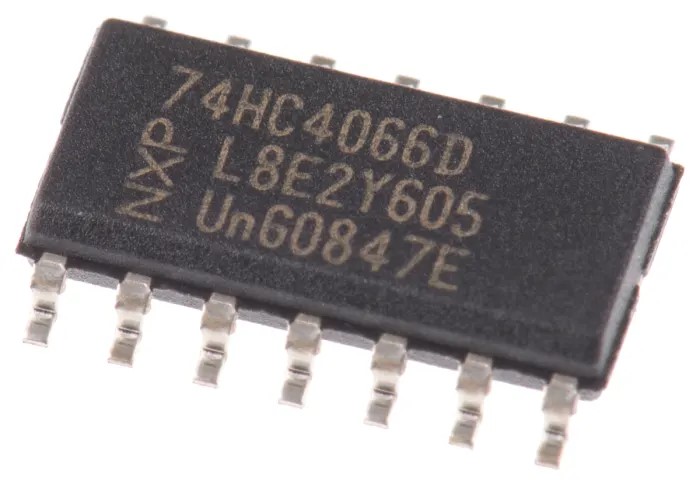

Switches Analog Multiplexer/Demultiplexer
Product Category: Analogue Switch ICs
Manufacturer: NXP
RoHS: RoHS Compliant Details
Number of Switches: 4 Switch
Configuration: 4 x SPST
On Resistance – Max: 85 Ohms
Switch Voltage – Max: 9 V
On Time – Max: 30 ns
Off Time – Max: 20 ns
Operating Supply Voltage: 5 V
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT
Package/Case: SO-14
Brand: NXP Semiconductors
Height: 1.45 mm (Max)
Length: 8.75 mm (Max)
Minimum Operating Temperature: – 40 C
Packaging: Tube
Pd – Power Dissipation: 500 mW
Factory Pack Quantity: 1140
Supply Current – Max: 80 uA
Supply Type: Single Supply
Supply Voltage – Max: 10 V
Supply Voltage – Min: 2 V
Switch Continuous Current: 25 mA
Width: 4 mm (Max)
Unit Weight: 0.5g
آی سی 74HC4066 شامل 4 کلید آنالوگ می باشد .
