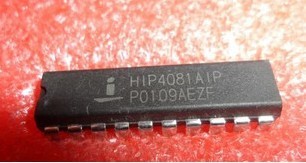

POWER MOSFET DRIVER
Product Category: Gate Drivers
Manufacturer: Intersil
RoHS: RoHS Compliant Details
Mounting Style: Through Hole
Package/Case: PDIP-20
Product: MOSFET Gate Drivers
Number of Drivers: 1 Driver
Output Current: – 30 uA
Configuration: Full Bridge
Rise Time: 10 ns
Fall Time: 10 ns
Supply Voltage – Max: 15 V
Supply Voltage – Min: 9.5 V
Operating Supply Current: 10.5 mA
Maximum Operating Temperature: + 85 C
Type: High Frequency Full Bridge FET Driver
Series: HIP4081A
Packaging: Tube
Brand: Intersil
Height: 4.95 mm (Max)
Length: 26.9 mm (Max)
Maximum Turn-Off Delay Time: 90 ns
Maximum Turn-On Delay Time: 110 ns
Minimum Operating Temperature: – 40 C
Number of Outputs: 1
Operating Supply Voltage: 9.5 V to 15 V
Output Voltage: 12.6 V
Factory Pack Quantity: 18
Width: 7.11 mm (Max)
Unit Weight: 2,260 g
آی سی HIP4081 شامل درایور گیت ماسفت به صورت پل کامل H می باشد.
