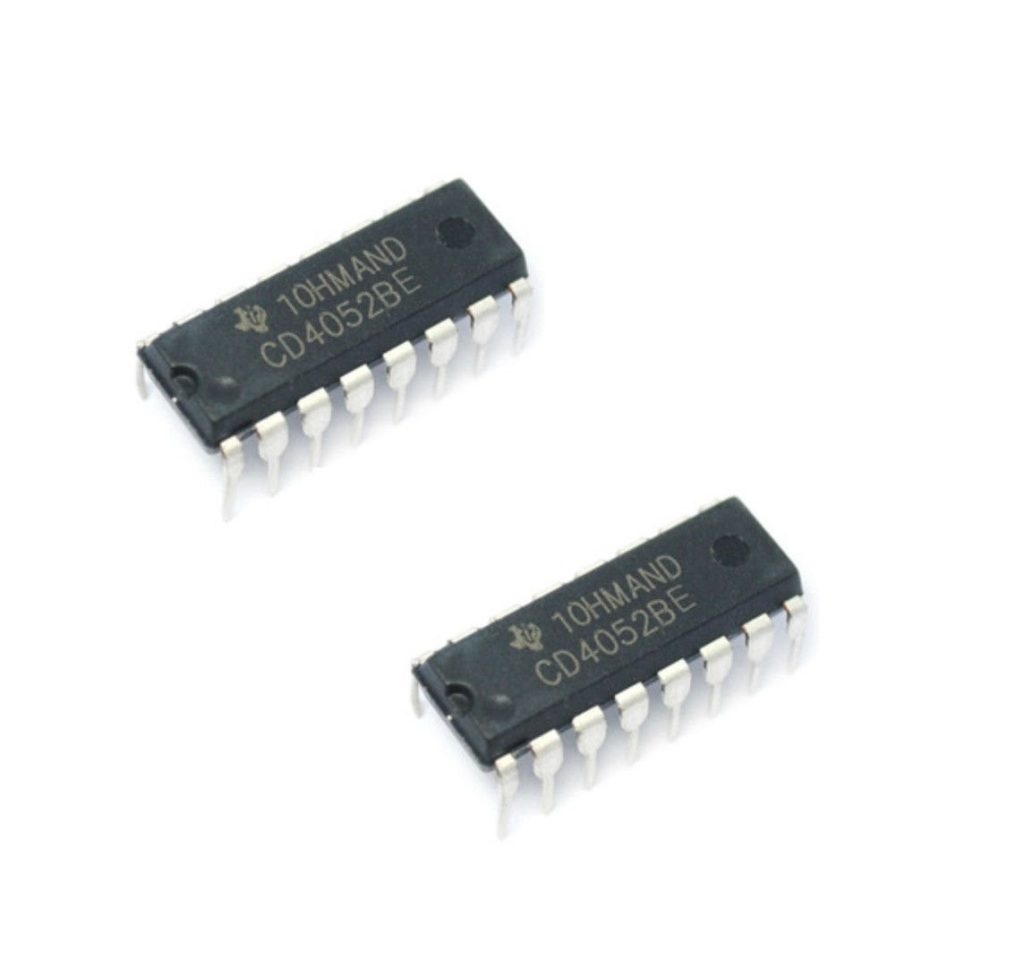

Dual 4-Ch Analog Mux/Dmux-CMOS
Product Category: Multiplexer Switch ICs
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Product: Multiplexers/Demultiplexers
Number of Channels: 4 Channel
Configuration: 2 x 4:1
On Resistance – Max: 240 Ohms
On Time – Max: 720 ns
Off Time – Max: 450 ns
Operating Supply Voltage: 5 V to 18 V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Bandwidth: 25 Mhz
Brand: Texas Instruments
Height: 4.57 mm
Length: 19.3 mm
Maximum Dual Supply Voltage: +/- 9 V
Minimum Operating Temperature: – 55 C
Packaging: Tube
Propagation Delay Time: 60 ns

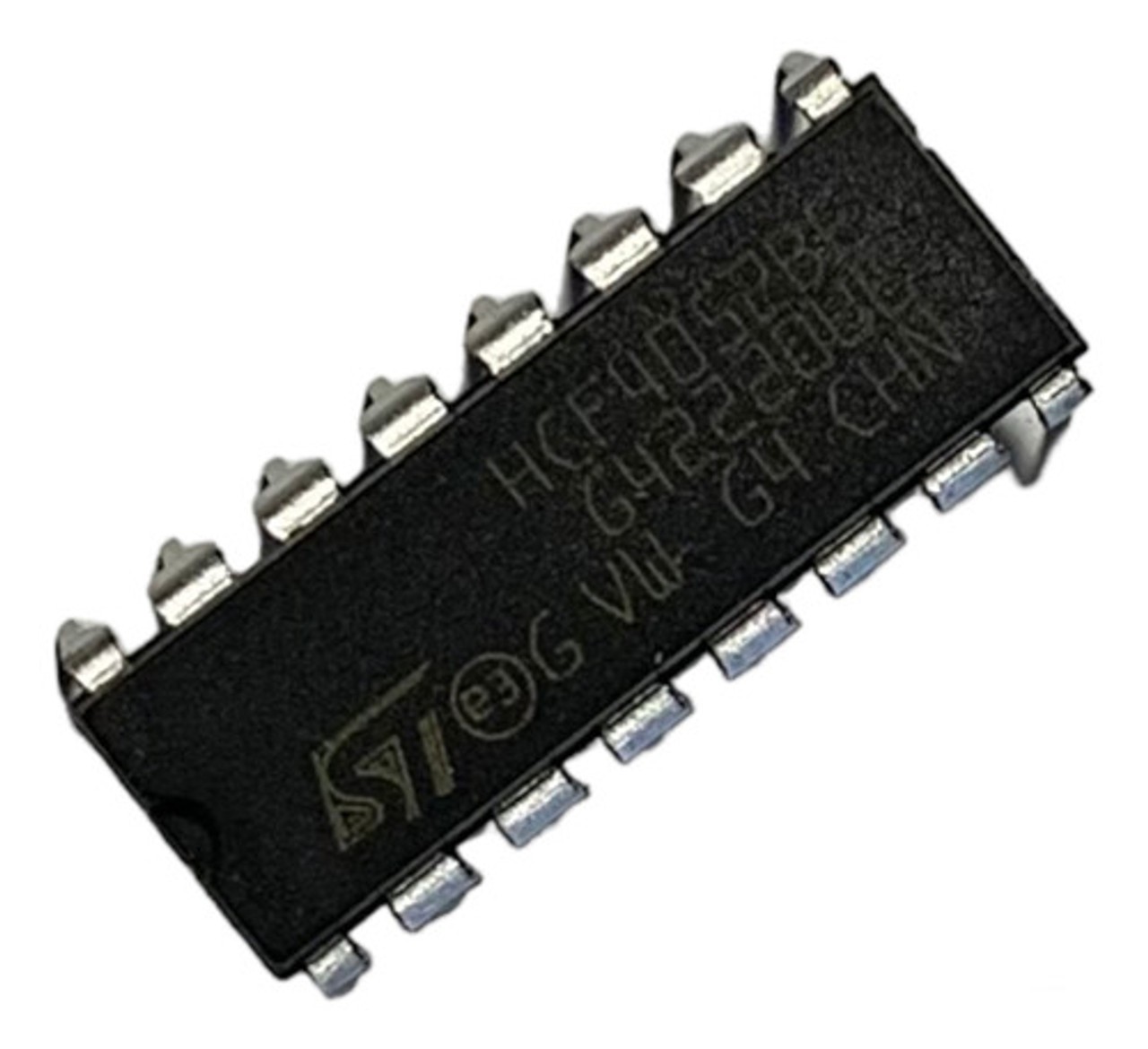

Series: CD4052B , HCF4052B , HEF4052B
Factory Pack Quantity: 25
Supply Current – Max: 100 uA
Supply Type: Single Supply, Dual Supply
Supply Voltage – Max: 18 V
Supply Voltage – Min: 5 V
Width: 6.35 mm
Unit Weight: 1 g
آی سی CD4052B شامل 2 مالتی پلکسر 4 به یک می باشد.
