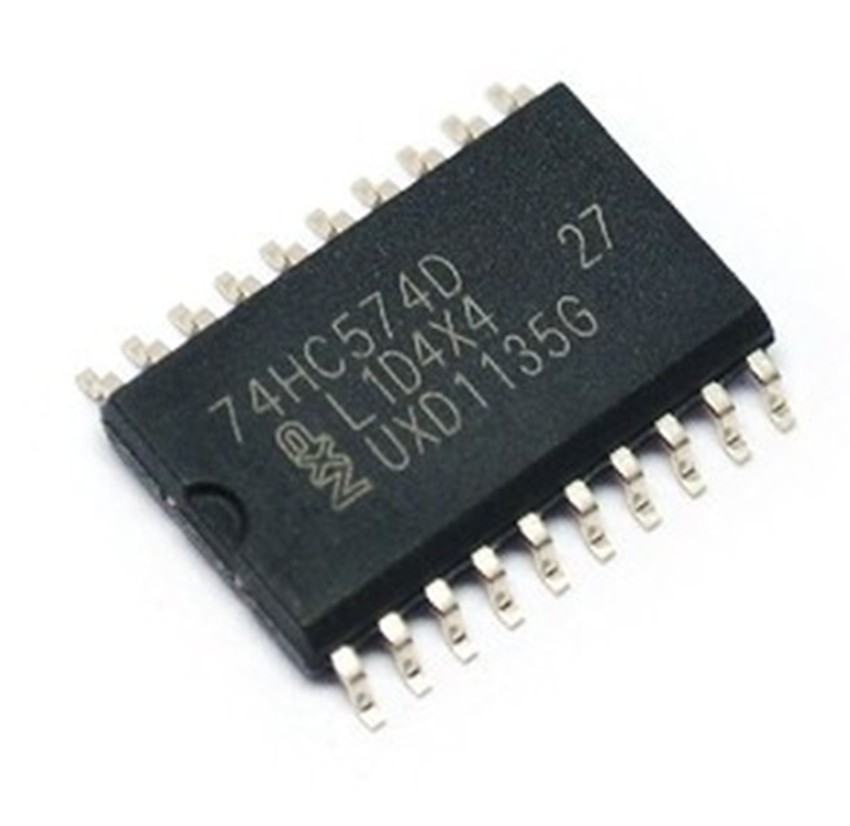

SMD, OCTAL D-TYPE FLIP FLOP-74574
Product Category: Flip-Flops
Manufacturer: NXP
RoHS: RoHS Compliant Details
Number of Circuits: 1
Logic Family: HC
Logic Type: D-Type Edge Triggered Flip-Flop
Polarity: Non-Inverting
Input Type: Single-Ended
Output Type: Single-Ended
Propagation Delay Time: 14 ns at 5 V
High Level Output Current: – 7.8 mA
Low Level Output Current: 7.8 mA
Supply Voltage – Max: 6 V
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT
Package/Case: SOT-163
Packaging: Reel
Brand: NXP Semiconductors
Function: D-Type Bus Interface
Height: 2.45 mm
Length: 13 mm
Minimum Operating Temperature: – 40 C
Number of Channels: 8
Number of Input Lines: 8
Number of Output Lines: 8
Operating Supply Voltage: 5 V
Quiescent Current: 8 uA
Factory Pack Quantity: 2000
Supply Voltage – Min: 2 V
Width: 7.6 mm
آی سی 74574 شامل 8 عدد فلیپ فلاپ D با خروجی سه حالته می باشد که می توانند به عنوان یک رجیستر 8 بیتی استفاده شوند.
