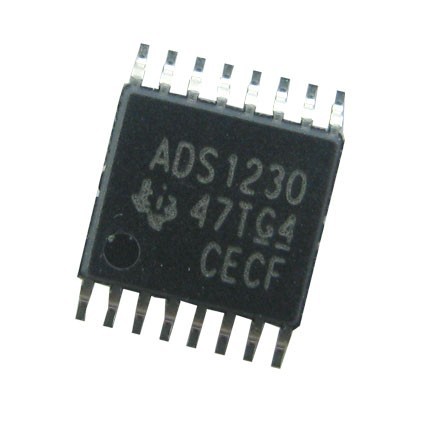

ADC Serial 20-Bit,1-ch
Product Category: Analog to Digital Converters – ADC
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Mounting Style: SMD/SMT
Package/Case: TSSOP-16
Resolution: 20 bit
Number of Channels: 1 Channel
Sampling Rate: 80 S/s
Input Type: Differential
Interface Type: Serial, 2-Wire, SPI
Architecture: Sigma-Delta
Reference Type: External
Analogue Supply Voltage: 2.7 V to 5.3 V
Digital Supply Voltage: 2.7 V to 5.3 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: – 40 C
Series: ADS1230
Packaging: Tube
Brand: Texas Instruments
Development Kit: ADS1230REF
DNL – Differential Nonlinearity: +/- 1 LSB
Features: PGA, Oscillator, 50/60 Hz Rejection
Height: 1 mm
INL – Integral Nonlinearity: +/- 10 ppm
Length: 5 mm
Number of Converters: 1 Converter
Operating Supply Voltage: 3 V to 5.3 V
Pd – Power Dissipation: 7.7 mW
Product: Analog to Digital Converters
Reference Voltage: 5 V
Factory Pack Quantity: 90
Width: 4.4 mm
Unit Weight: 63 mg
آی سی ADS1230 یک مبدل آنالوگ به دیجیتال 20 بیتی می باشد.این آیسی در مدهای سریال، I2C و SPI می باشد.
