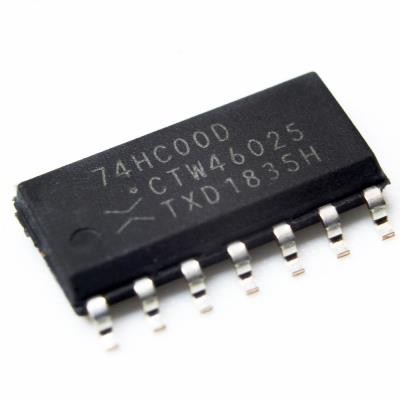

TTL 7400-SMD-QUAD 2-INPUT NAND GATE
Product Category: Logic Gates
Manufacturer: MOTOROLA
RoHS: RoHS Compliant Details
Product: Single-Function Gate
Logic Function: NAND
Logic Family: 74HC
Number of Gates: 4 Gate
Number of Input Lines: 8 Input
Number of Output Lines: 4 Output
High Level Output Current: – 5.2 mA
Low Level Output Current: 5.2 mA
Propagation Delay Time: 7 ns
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT
Package/Case: SO-14
Packaging: Tube
Brand: MOTOROLA
Function: NAND
Height: 1.45 mm (Max)
Length: 8.75 mm (Max)
Logic Type: Quad NAND Gate
Minimum Operating Temperature: – 40 C
Operating Supply Voltage: 2 V to 6 V
Factory Pack Quantity: 1140
Width: 4 mm (Max)
آی سی 7400 یک آی سی TTL و دارای 4 گیت Nand دو ورودی می باشد .
