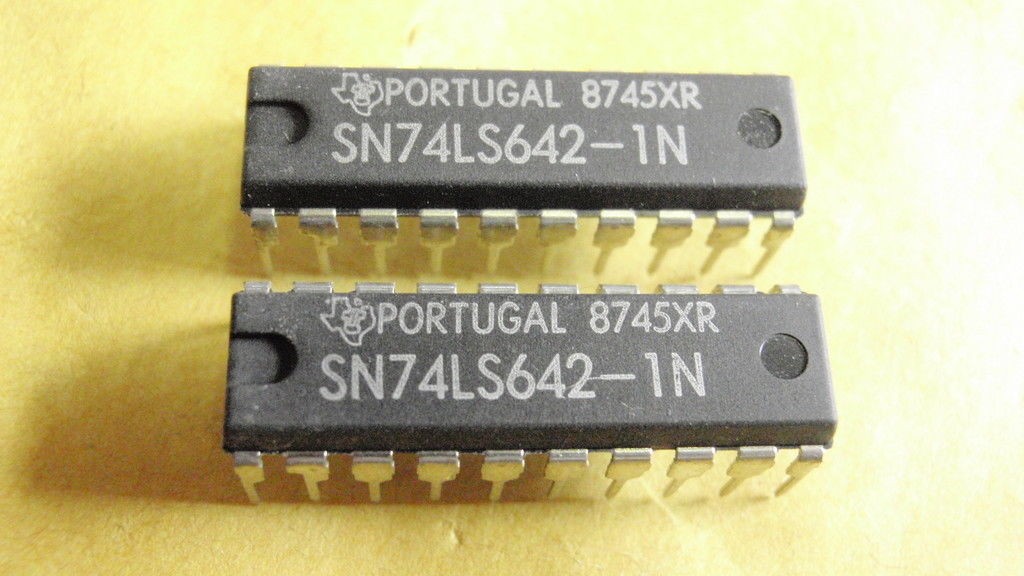

TTL 74642-OCTAL BUS TRANSCEIVER
Product Category: Bus Transceivers Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Logic Family: LS
Input Level: TTL
Output Level: TTL
Output Type: Open Collector
High Level Output Current: – 15 mA
Low Level Output Current: 48 mA
Propagation Delay Time: 25 ns
Supply Voltage – Max: 5.25 V
Supply Voltage – Min: 4.75 V
Maximum Operating Temperature: + 70 C
Package/Case: PDIP-20
Packaging: Tube
Brand: Texas Instruments
Function: Octal Bus with OC Out
Height: 4.57 mm
Length: 24.33 mm
Minimum Operating Temperature: 0 C
Mounting Style: Through Hole
Number of Channels: 8
Number of Circuits: 8
Operating Supply Voltage: 4.75 V to 5.25 V
Operating Temperature Range: 0 C to + 70 C
Polarity: Inverting
Product: Standard Transceiver
Series: SN74LS642
Factory Pack Quantity: 20
Technology: Bipolar
Width: 6.35 mm
Unit Weight: 1,199 g
آی سی 74LS642 شامل یک باس دو طرفه 8 بیتی با خروجی کلکتور باز می باشد.
