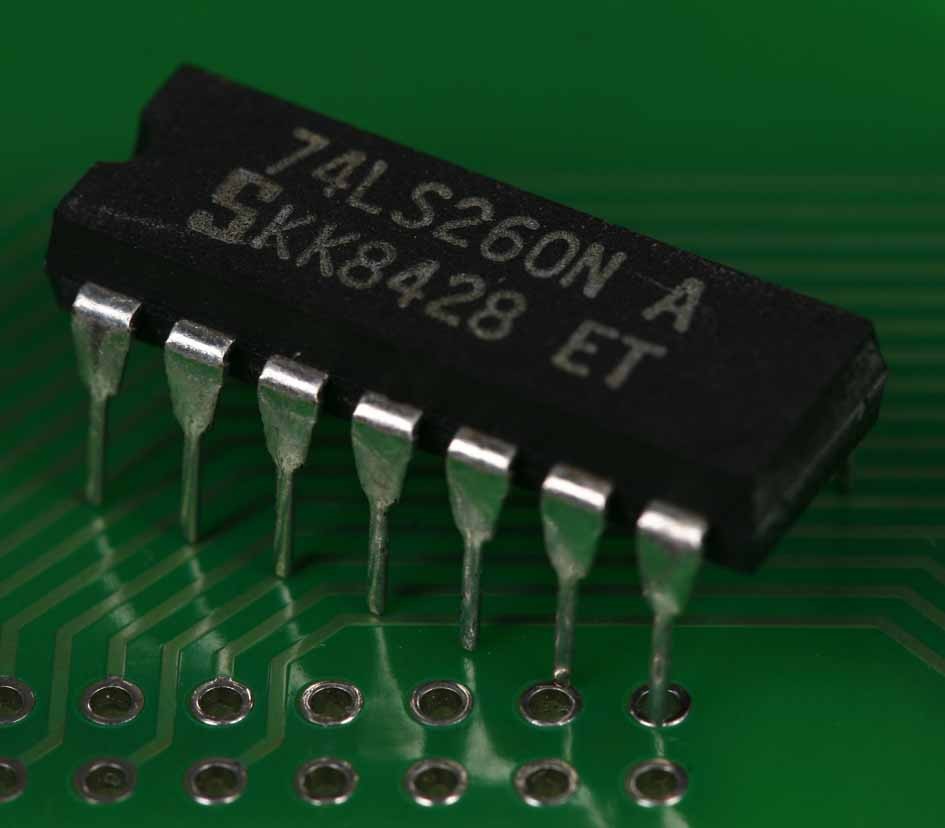

TTL 74260-DUAL 5-INPUT , NOR GATE
Product Category: Logic Gates
Manufacturer: Texas Instruments
Logic Family: LS
Number of Gates: 2 Gate
Number of Input Lines: 5 Input
Number of Output Lines: 1 Output
High Level Output Current: – 0.4 mA
Low Level Output Current: 8 mA
Propagation Delay Time: 12 ns at 5 V
Supply Voltage – Max: 5.25 V
Supply Voltage – Min: 4.75 V
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package/Case: PDIP
Brand: Texas Instruments
Function: NOR
Height: 3.3 mm
Length: 19.05 mm
Logic Type: Bipolar
Minimum Operating Temperature: 0 C
Operating Supply Voltage: 5 V
Width: 6.35 mm
آی سی 74260 شامل 2 گیت منطقی NOR با 5 ورودی می باشد.
