Non-isolated Off-line PWM converters
一、General Description

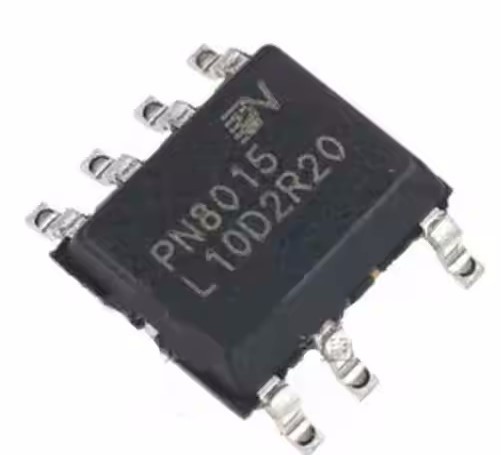

The PN8015 consists of an integrated Pulse Width Modulator (PWM) controller and power MOSFET， specifically designed forsmall power non-isolated switching power supply. Variable output voltage could be adjusted by FB resistors. PN8015 has internalhigh voltage start-up and self-supply circuit, and complete intelligent protections including Cycle-by-Cycle current limiting (OCP),Over Load Protection (OLP), Under Voltage Lockout (UVLO) and Over Temperature Protection (OTP). Excellent EMI performancecould be achieved with Pulse Frequency Modulation.
二、 Features
Internal 800V avalanche-rugged smart power VDMOSFET
Internal HV Start-up and Self-supply Circuit
Supporting Buck, Buck-Boost and Flyback topologies
Variable Output Voltage 3.3V~24V adjusted by FB resistors
Semi enclosed steady output current >200mA @230VAC
Frequency modulation for low EMI
Excellent constant voltage regulation and High efficiency
Excellent Protection Coverage:
Over Load Protection（ OLP）
Over Temperature Protection（ OTP）
Under Voltage Lockout（ UVLO）
