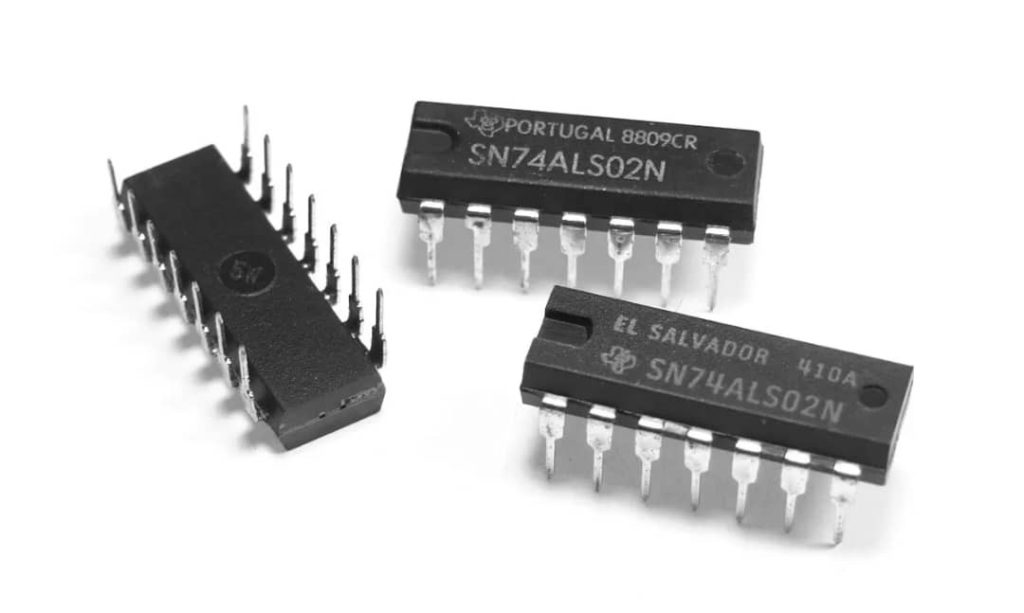

TTL 7402-2-INPUT NOR GATE
Product Category: Logic Gates Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Product: Single-Function Gate
Logic Function: NOR
Logic Family: LS
Number of Gates: 4 Gate
Number of Input Lines: 2 Input
Number of Output Lines: 1 Output
High Level Output Current: – 8 mA
Low Level Output Current: 0.4 mA
Propagation Delay Time: 22 ns
Supply Voltage – Max: 5.25 V
Supply Voltage – Min: 4.75 V
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package/Case: PDIP-14
Packaging: Tube
Brand: Texas Instruments
Function: Quad 2-Input
Height: 4.57 mm
Input Type: TTL
Length: 19.3 mm
Logic Type: 2-Input NOR
Minimum Operating Temperature: 0 C
Number of Bits: 4 bit
Operating Supply Current: 27 uA
Operating Supply Voltage: 5 V
Operating Temperature Range: 0 C to + 70 C
Output Type: TTL
Series: SN74LS02
Factory Pack Quantity: 25
Width: 6.35 mm
Unit Weight: 1 g
آی سی 7402شامل 4 عدد گیت NOR دو ورودی از خانواده TTL می باشد.
