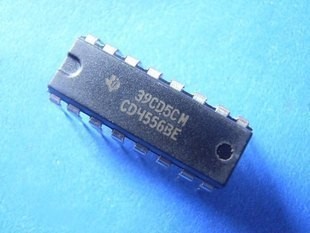

CMOS- 16pin DUAL 1-OF-4 DECODER/DEMU
Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Product: Decoders / Demultiplexers
Logic Family: CD4000
Number of Input Lines: 1 Input
Number of Output Lines: 4 Output
Propagation Delay Time: 190 ns
Supply Voltage – Max: 18 V
Supply Voltage – Min: 3 V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Packaging: Tube
Brand: Texas Instruments
Function: Dual Binary 1-of-4
Height: 4.57 mm
High Level Output Current: – 1.5 mA
Input Voltage: – 0.5 V to + 0.5 V
Length: 19.3 mm
Logic Type: Decoders/Demultiplexers
Low Level Output Current: 1.5 mA
Maximum Clock Frequency: 8 MHz
Minimum Operating Temperature: – 55 C
Number of Circuits: Dual
Operating Supply Voltage: 3 V to 18 V
Operating Temperature Range: – 55 C to + 125 C
Output Current: 5 mA
Output Voltage: 3 V to 18 V
Pd – Power Dissipation: 500 mW
Series: CD4556B , M4556B
Factory Pack Quantity: 25
Supply Current – Max: 0.1 mA
Technology: CMOS
Width: 6.35 mm
Unit Weight: 1 g
آی سی CD4556BE شامل 2 دیکدر 1 به 4 می باشد.
