Dual 1 Of 4 Decoder/Demux
Features•
High Voltage Type (20V Rating
• CD4555BMS: Outputs High on Select
• CD4556BMS: Outputs Low on Select
• Expandable with Multiple Packages
• 100% Tested for Quiescent Current at 20V
• Standardized, Symmetrical Output Characteristics
• Maximum Input Current of 1UA at 18V Over Full Pack-age Temperature Range; 100nA at 18V and +25oC
• Noise Margin (Over Full Package/Temperature Range)
– 1V at VDD = 5V
– 2V at VDD = 10V
– 2.5V at VDD = 15V
• 5V, 10V and 15V Parametric Ratings
• Meets All Requirements of JEDEC Tentative Standard
No. 13B, “Standard Specifications for Description of
‘B’ Series CMOS Devices”

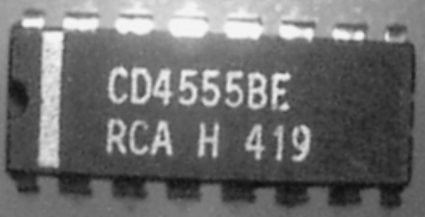

آی سی CD4555B شامل 2 دیکدر 1 به 4 می باشد.
