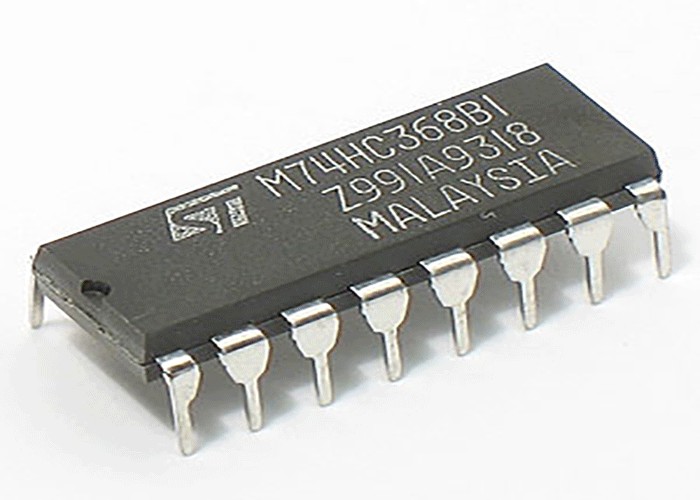

TTL 74368-HEX BUS DRIVER 3-STATE
Product Category: Buffers & Line Drivers
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Number of Input Lines: 6 Input
Number of Output Lines: 6 Output
Polarity: Inverting
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Packaging: Tube
Brand: Texas Instruments
Function: Buffer/Line Driver
Height: 4.57 mm
High Level Output Current: – 7.8 mA
Input Signal Type: Single-Ended
Length: 19.3 mm
Logic Family: HC
Logic Type: CMOS
Low Level Output Current: 7.8 mA
Minimum Operating Temperature: – 40 C
Number of Channels: 5
Operating Supply Current: 80 uA
Operating Supply Voltage: 5 V
Operating Temperature Range: – 40 C to + 85 C
Output Type: 3-State
Propagation Delay Time: 120 ns at 2 V, 24 ns at 4.5 V, 20 ns at 6 V
Quiescent Current: 8 uA
Series: SN74HC368
Factory Pack Quantity: 25
Supply Current – Max: 8 uA
Technology: CMOS
Width: 6.35 mm
Unit Weight: 1 g
آی سی 74368 یک بافر 3 حالته 8 تایی می باشد.
