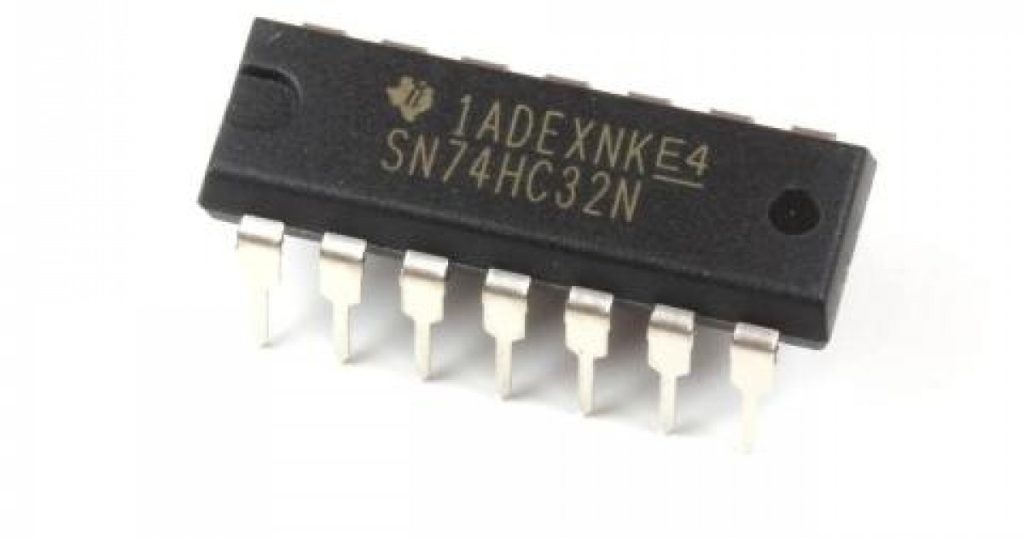

TTL 7432-QUAD 2-INPUT OR GATE
Product Category: Logic Gates
Manufacturer: Texas Instrument
Product: Single-Function Gate
Logic Function: OR
Logic Family: 74HC
Number of Gates: 4 Gate
Number of Input Lines: 2 Input
Number of Output Lines: 1 Output
High Level Output Current: – 5.2 mA
Low Level Output Current: 5.2 mA
Propagation Delay Time: 90 ns
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-14
Packaging: Tube
Brand: NXP Semiconductors
Function: OR
Height: 3.2 mm
Length: 19.5 mm
Logic Type: Quad OR Gate
Minimum Operating Temperature: – 40 C
Operating Supply Voltage: 5 V
Factory Pack Quantity: 25
Width: 6.48 mm
Unit Weight: 1,620 g
آی سی 7432 دارای 4 گیت مجزای OR می باشد، یعنی می تواند همزمان 4 عمل OR را انجام دهد.
