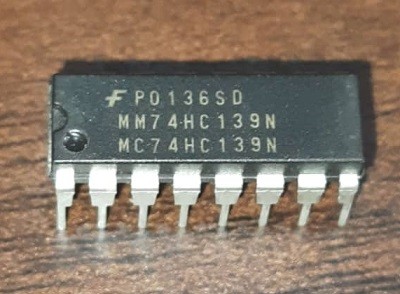

TTL 74139-DUAL 2-LINE TO 4-LINE DECODERS/DEMULTIPLEXER
Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Product: Decoders / Demultiplexers
Logic Family: HC
Number of Input Lines: 2 Input
Number of Output Lines: 4 Output
Propagation Delay Time: 44 ns
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Packaging: Tube
Brand: Texas Instruments
Function: Decoder/Demultiplexer
Height: 4.57 mm
High Level Output Current: – 5.2 mA
Length: 19.3 mm
Logic Type: Decoders/Demultiplexers
Low Level Output Current: 5.2 mA
Maximum Clock Frequency: 28 MHz
Minimum Operating Temperature: – 40 C
Number of Circuits: Dual
Operating Supply Voltage: 2 V to 6 V
Operating Temperature Range: – 40 C to + 85 C
Pd – Power Dissipation: 320 mW
Series: SN74HC139
Factory Pack Quantity: 25
Supply Current – Max: 0.08 mA
Technology: CMOS
Width: 6.35 mm
Unit Weight: 1 g
آی سی74139 دارای دو عدد دی مالتی پلکسر 4 خروجی می باشد.
