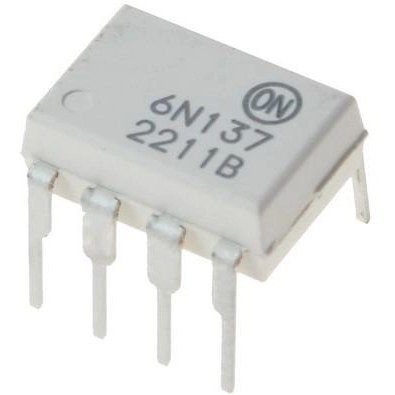

8PIN- Ac input Type Photocoupler,6N137اپتو کوپلر
Product Category: High Speed Optocouplers
Manufacturer: ONSemiconductor
RoHS: RoHS Compliant Details
Package/Case: PDIP-8
Data Rate: 10 Mbps
Number of Channels: 1 Channel
Output Type: Open Collector
Isolation Voltage: 2500 Vrms
Vf – Forward Voltage: 1.4 V
If – Forward Current: 10 mA
Vr – Reverse Voltage: 5 V
Pd – Power Dissipation: 100 mW
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: – 40 C
Series: 6N137
Packaging: Bulk
Brand: Fairchild Semiconductor
Fall Time: 12 ns
Height: 3.04 mm
Length: 9.91 mm
Maximum Collector Current: 50 mA
Operating Supply Voltage: 4.5 V to 5.5 V
Output Current: 50 mA
Rise Time: 50 ns
Factory Pack Quantity: 50
Width: 6.86 mm
Unit Weight: 819 mg
اپتو کوپلر ، فوتو کوپلر ، ایزولاتور ،PHOTOCUPLER
