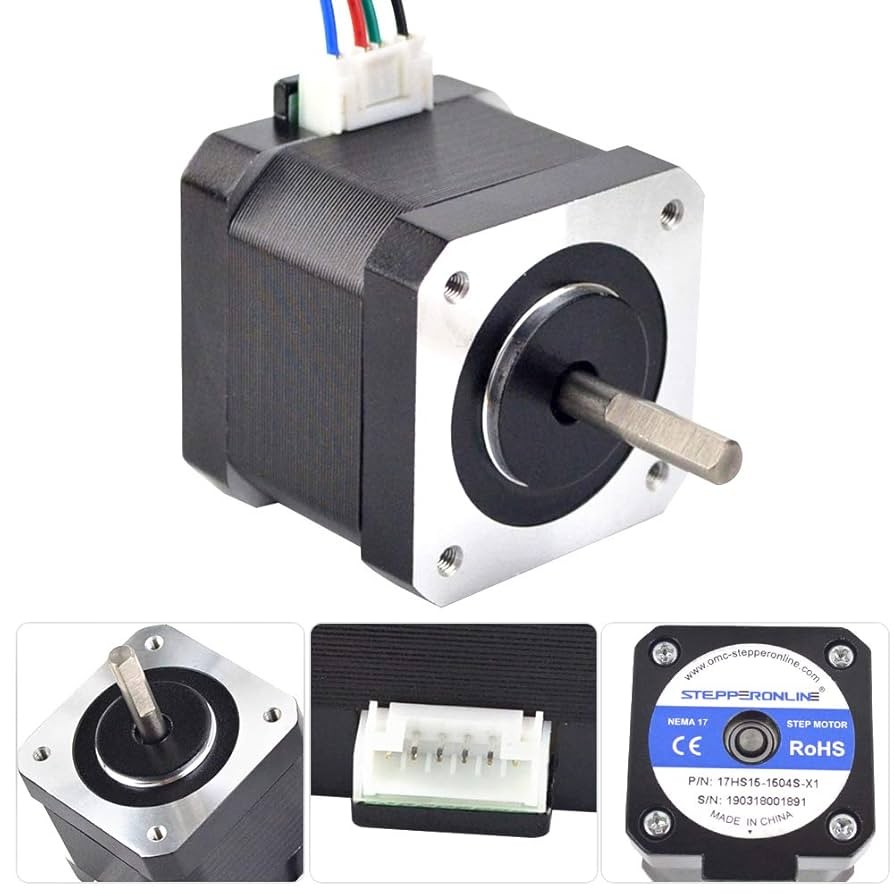

استپرموتور 1.8 درجه 1.5 آمپر 4 سیمه

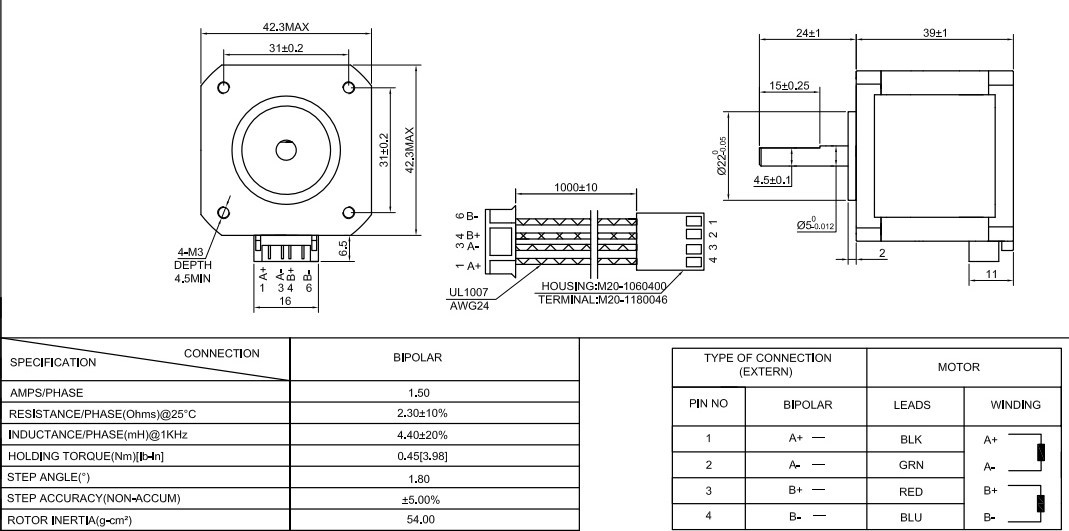

Electrical Specification STEPPER MOTOR
Manufacturer Part Number: 17HS15-1504S-X1
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 45Ncm(63.74oz.in)
Rated Current/phase: 1.50A
Phase Resistance: 2.3ohms
Inductance: 4.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

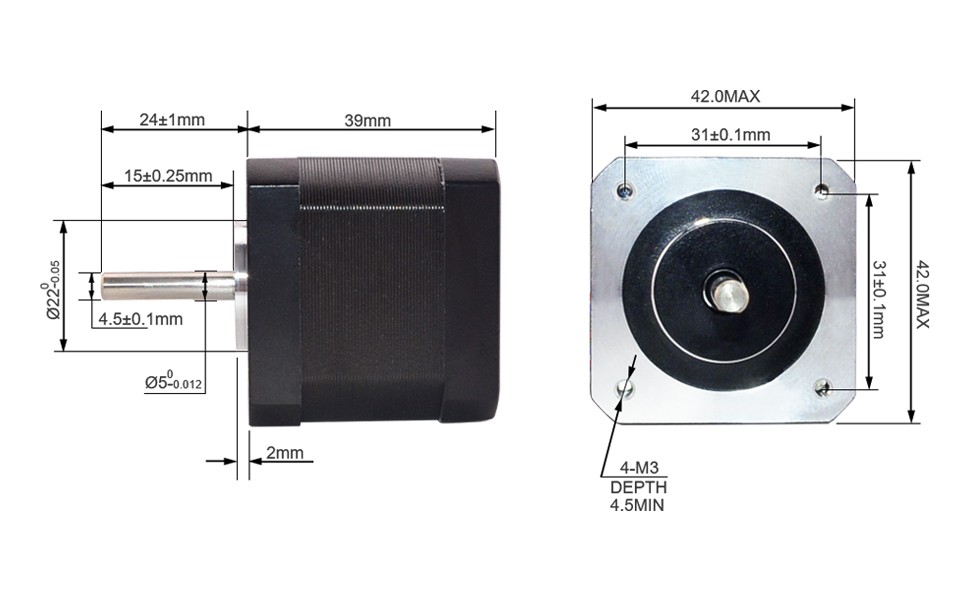

Physical Specification
Frame Size: 42 x 42mm
Body Length: 40mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 1000mm
Weight: 280g
