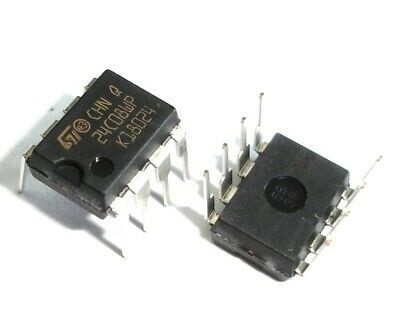

CMOS 8KBIT (1KB*8) S-EEPROM
Product Category: EEPROM
Manufacturer: ST
RoHS: RoHS Compliant Details
Mounting Style: Through Hole
Package/Case: PDIP-8
Memory Size: 8 kbit
Interface Type: Serial, 2-Wire, I2C
Organisation: 1 k x 8
Data Retention: 100 Year
Maximum Clock Frequency: 0.4 MHz
Supply Current – Max: 2 mA
Operating Supply Voltage: 1.8 V , 2.5 V , 3.3 V , 5 V
Maximum Operating Temperature: + 85 C
Series: CAT24C08
Packaging: Tube
Access Time: 900 ns
Brand: ST
Height: 3.3 mm
Length: 9.27 mm
Minimum Operating Temperature: – 40 C
Operating Supply Current: 2 mA
Factory Pack Quantity: 50
Supply Voltage – Max: 5.5 V
Supply Voltage – Min: 1.7 V
Width: 6.35 mm
Unit Weight: 1 g
آی سی 24C08 یک آی سی حافظه باظرفیت 8KB می باشد
