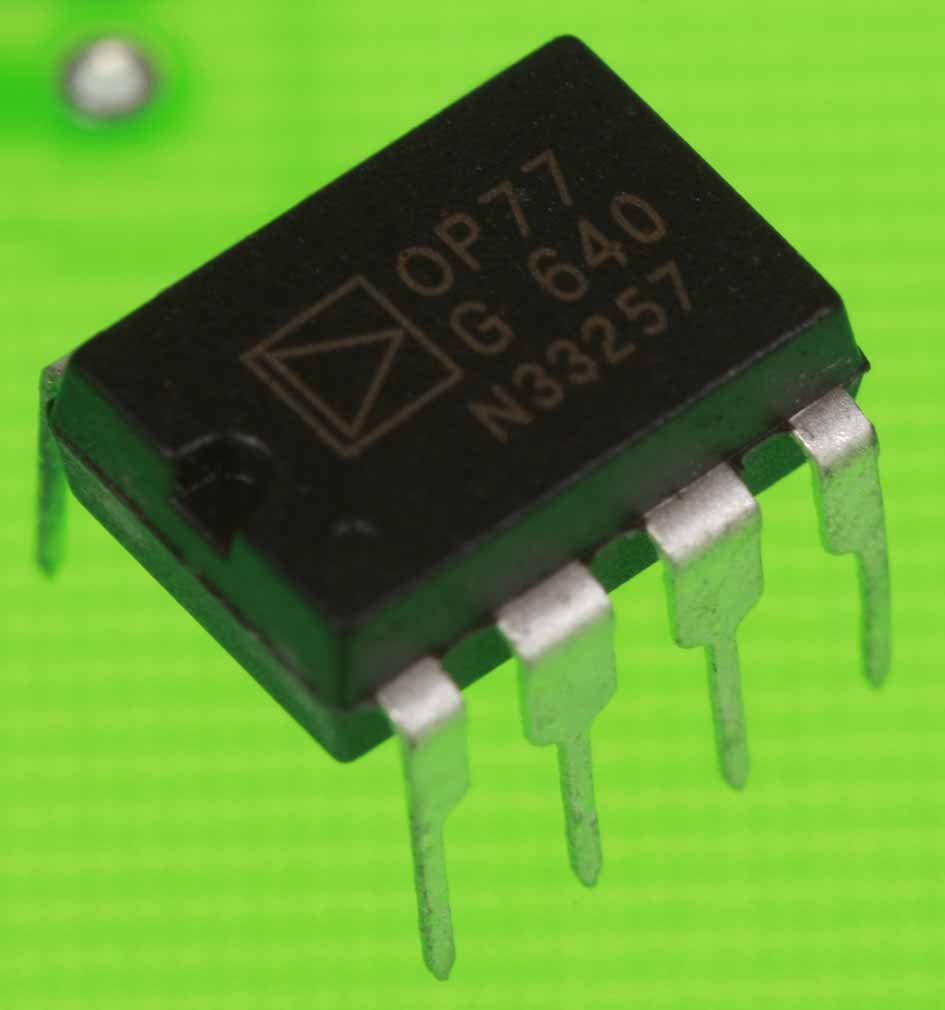

ULTRA PRECISION OPAMP
Product Category: Precision Amplifiers Manufacturer: Analog Devices Inc.
RoHS: No
Number of Channels: 1 Channel
GBP – Gain Bandwidth Product: 600 kHz
SR – Slew Rate: 0.3 V/us
Ib – Input Bias Current: 2 nA
Vos – Input Offset Voltage: 10 uV
en – Input Voltage Noise Density: 10.3 nV/sqrt Hz at +/- 15 V
Supply Voltage – Max: 18 V
Supply Voltage – Min: 3 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: – 25 C
Shutdown: No Shutdown
Mounting Style: Through Hole
Package/Case: CDIP-8
Packaging: Tube
Brand: Analog Devices
Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V
Gain V/V: 5000 V/mV
Height: 3.56 mm (Max)
Input Voltage Range – Max: 14 V
Length: 10.29 mm (Max)
Maximum Dual Supply Voltage: +/- 22 V
Minimum Dual Supply Voltage: +/- 3 V
Operating Supply Voltage: 3 V to 18 V
Pd – Power Dissipation: 60 mW
Product: Precision Amplifiers
PSRR – Power Supply Rejection Ratio: 0.7 uV/V
Series: OP77
Factory Pack Quantity: 50
Type: Operational
Voltage Gain dB: 141.58 dB
Width: 7.87 mm (Max)
آی سی OP77 یک عدد آپ امپ تکی با آفست ولتاژی خیلی کم می باشد. به عبارتی نسل بعدی OP07 است.
