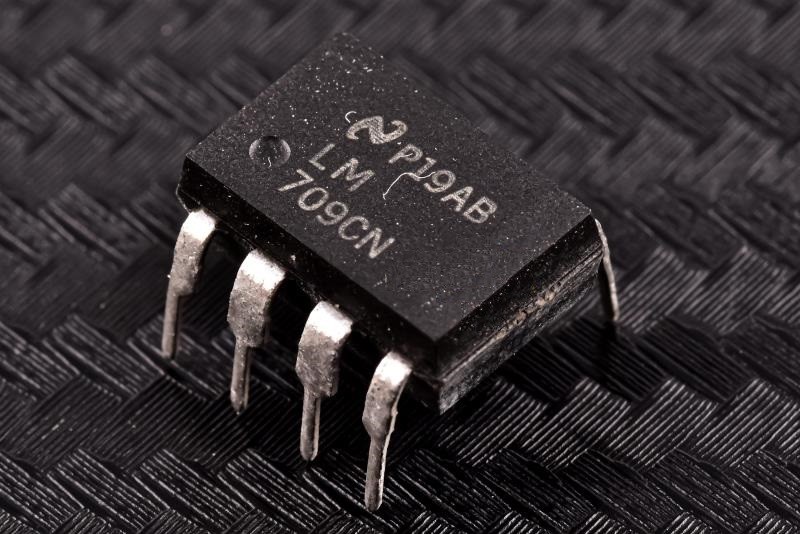

MONOLITHIC OPAMP-IL709M
General Description
The LM709 series is a monolithic operational amplifier in- tended for general-purpose applications. Operation is com- pletely specified over the range of voltages commonly used for these devices. The design, in addition to providing high gain, minimizes both offset voltage and bias currents. Fur- ther, the class-B output stage gives a large output capability with minimum power drain. External components are used to frequency compensate the amplifier. Although the unity-gain compensation network specified will make the amplifier unconditionally stable in all feedback configurations, compensation can be tailored to optimize high-frequency performance for any gain setting.The LM709C is the commercial-industrial version of the LM709. It is identical to the LM709 except that it is specified for operation from 0ß Ctoa 70ß
C.
آی سی LM709 یک آپ امپ شامل یک تقویت کننده عملیاتی برای کاربردهای عمومی می باشد.
