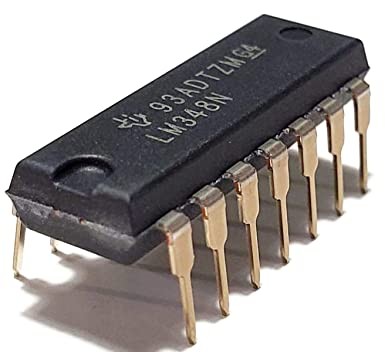

QUAD,LOW POWER OPAMP
Product Category: Operational Amplifiers – Op Amps
Manufacturer: Fairchild Semiconductor
RoHS: RoHS Compliant Details
Mounting Style: Through Hole
Package/Case: DIP-14
Number of Channels: 4 Channel
GBP – Gain Bandwidth Product: 1 MHz
SR – Slew Rate: 0.5 V/us
CMRR – Common Mode Rejection Ratio: 70 dB
Ib – Input Bias Current: 200 nA
Vos – Input Offset Voltage: 6 mV
Operating Supply Current: 4.5 mA
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
Shutdown: No Shutdown
Packaging: Tube
Amplifier Type: High Gain Amplifier
Brand: Fairchild Semiconductor
Height: 3.56 mm (Max)
Length: 19.56 mm (Max)
Maximum Dual Supply Voltage: +/- 18 V
Product: Operational Amplifiers
PSRR – Power Supply Rejection Ratio: 77 dB
Factory Pack Quantity: 1500
Supply Type: Dual
Technology: Bipolar
Voltage Gain dB: 104.08 dB
Width: 6.6 mm (Max)
Unit Weight: 1.620 g
آی سی LM348N یک آپ امپ شامل چهار تقویت کننده عملیاتی کم مصرف می باشد.
