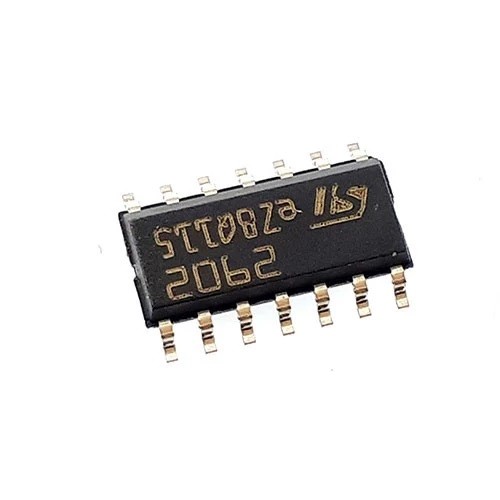

Low-power op-amp ,quad
oduct Category: Operational Amplifiers – Op Amps
Manufacturer: ST Semiconductor
RoHS: RoHS Compliant Details
Mounting Style: Through Hole
Package/Case: SO-14
Supply Voltage – Max: 26 V
Output Current per Channel: 40 mA
Number of Channels: 4 Channel
CMRR – Common Mode Rejection Ratio: 50 dB
Ib – Input Bias Current: 250 nA
Vos – Input Offset Voltage: 7 mV
Supply Voltage – Min: 3 V
Operating Supply Current: 1.2 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: – 40 C
Shutdown: No Shutdown
Series: LM2902
Packaging: Bulk
Amplifier Type: High Gain Amplifier
Brand: Fairchild Semiconductor
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
Height: 3.56 mm (Max)
Length: 19.56 mm (Max)
Maximum Dual Supply Voltage: +/- 13 V
Minimum Dual Supply Voltage: +/- 1.5 V
Operating Supply Voltage: 3 V to 26 V, +/- 1.5 V to +/- 13 V
Pd – Power Dissipation: 1310 mW
Product: Operational Amplifiers
PSRR – Power Supply Rejection Ratio: 50 dB
Factory Pack Quantity: 2500
Supply Type: Single, Dual
Technology: Bipolar
Voltage Gain dB: 100 dB
Width: 6.6 mm (Max)
Unit Weight: 0.620 g
آی سی LM2902N یک اپ امپ شامل چهار تقویت کننده مستقل با گین بالا می باشد.
