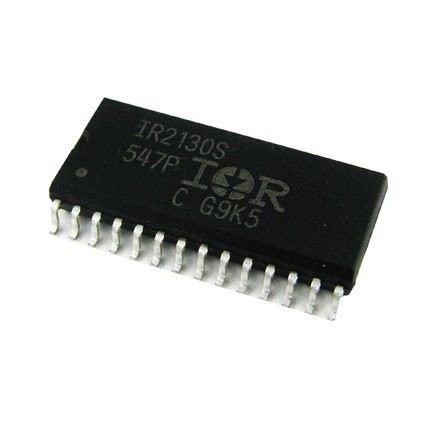

3PHASE POWER MOSFET DRIVER
Manufacturer
Infineon Technologies
Manufacturers Part #
IR2130S
Categories
Integrated Circuits (ICs)
Sub-Categories
PMIC – Gate Drivers
Series
–
Part Status
Obsolete
Driven Configuration
Half-Bridge
Channel Type
3-Phase
Number of Drivers
6
Gate Type
IGBT, N-Channel MOSFET
Voltage – Supply
10V ~ 20V
Logic Voltage – VIL, VIH
0.8V, 2.2V
Current – Peak Output (Source, Sink)
250mA, 500mA
Input Type
Inverting
High Side Voltage – Max (Bootstrap)
600V
Rise / Fall Time (Typ)
80ns, 35ns
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
28-SOIC (0.295″, 7.50mm Width)
Supplier Device Package
28-SOIC
