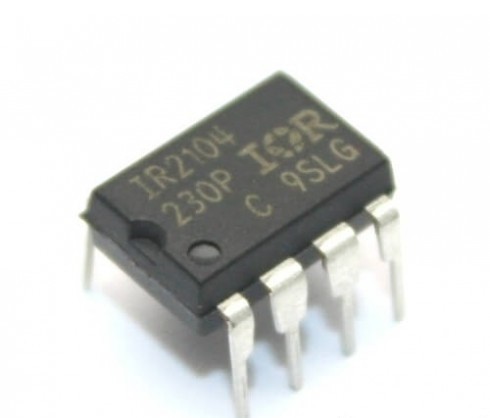

HIGH/LOW SIDE MOSFET DRIVER
Product Category: Gate Drivers
Manufacturer: Infineon
RoHS: RoHS Compliant Details
Mounting Style: Through Hole
Package/Case: PDIP-8
Product: Half-Bridge Drivers
Number of Drivers: 2 Driver
Output Current: 130 mA
Configuration: Inverting, Non-Inverting
Rise Time: 170 ns
Fall Time: 90 ns
Supply Voltage – Max: 20 V
Supply Voltage – Min: 10 V
Operating Supply Current: 270 uA
Maximum Operating Temperature: + 125 C
Type: High and Low Side
Packaging: Tube
Brand: Infineon Technologies
Features: Synchronous
Height: 5.33 mm (Max)
Length: 10.92 mm (Max)
Logic Type: CMOS, LSTTL
Maximum Turn-Off Delay Time: 150 ns
Maximum Turn-On Delay Time: 680 ns
Minimum Operating Temperature: – 40 C
Number of Outputs: 2
Pd – Power Dissipation: 1 W
Propagation Delay – Max: 820 ns
Factory Pack Quantity: 50
Width: 7.11 mm (Max)
Unit Weight: 1 g
آی سی IR2104 یک درایور پرسرعت ماسفت دوبل می باشد .
