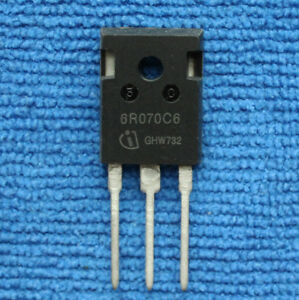

ترانزیستور ماسفت IPW6R070C6 MOSFETN-Mosfet/1 Channel/600V/53A/63 mOhms
Manufacturer:Infineon
Product Category:MOSFET
RoHS:Details
Technology:Si
Mounting Style:Through Hole
Package / Case:TO-247-3
Number of Channels:1 Channel
Transistor Polarity:
N-ChannelVds – Drain-Source Breakdown Voltage:600 V
Id – Continuous Drain Current:53 A
Rds On – Drain-Source Resistance:63 mOhms
Vgs – Gate-Source Voltage:20 V
Vgs th – Gate-Source Threshold Voltage:2.5 V
Qg – Gate Charge:170 nC
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 150 C
Pd – Power Dissipation:391 W
Configuration:Single
Channel Mode:Enhancement
Tradename:CoolMOS
Packaging:Tube
Height:21.1 mm
Length:16.13 mm
Series:CoolMOS C6
Transistor Type:1 N-Channel
Type:600 V CoolMOS C6 Power Transistor
Width:5.21 mm
Brand:Infineon Technologies
Fall Time:5 ns
Product Type:MOSFET
Rise Time:12 ns
Factory Pack Quantity:240
Subcategory:MOSFETs
Typical Turn-Off Delay Time:83 ns
Typical Turn-On Delay Time:16 ns
Unit Weight:38 g
