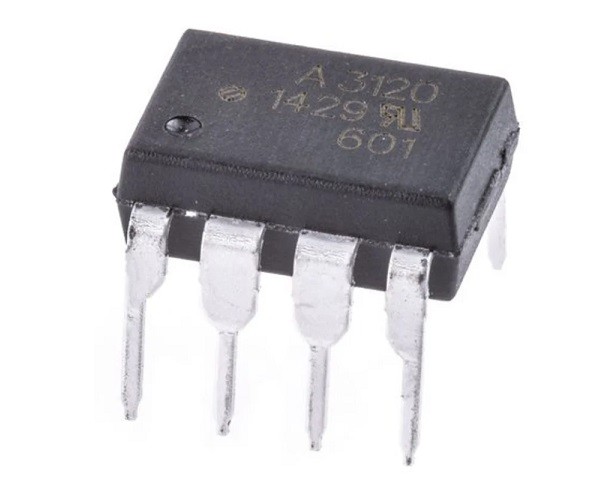

اپتودرايو گيت IGBT 8 پايه 8PIN IGBT GATE DRIVER
Product Category: Logic Output Opto-couplers Manufacturer: Broadcom Limited
Package/Case: DIP-8
Output Type: Open Collector
Number of Channels: 1 Channel
Isolation Voltage: 3750 Vrms
If – Forward Current: 16 mA
Vf – Forward Voltage: 1.8 V
Vr – Reverse Voltage: 5 V
Pd – Power Dissipation: 295 mW
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 40 C
Packaging: Tube
Brand: Broadcom / Avago
Fall Time: 100 ns
Height: 3.56 mm
Length: 9.65 mm
Propagation Delay – Max: 500 ns
Factory Pack Quantity: 50
Width: 6.35 mm
Logic Output Opto-couplers 2.0A IGBT Gate Drive
HCPL-3120
گیت درایور ، ایزولاتور ، IGBT DRIVER , GATE DRIVER , OPTOCUPLER , ISOLATOR
نقد و بررسی وجود ندارد.
