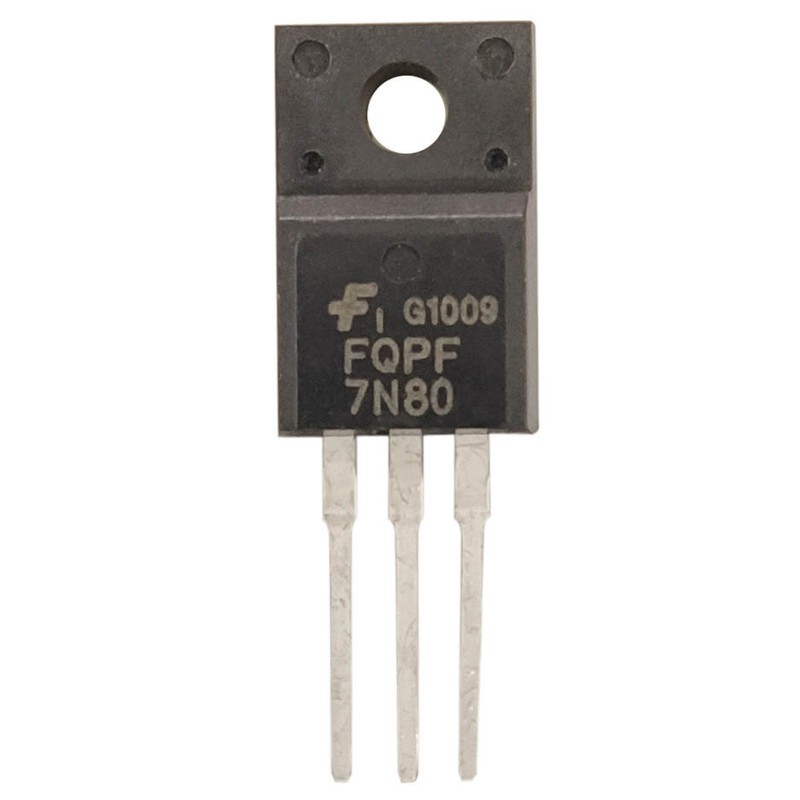

ترانزیستور ماسفت پلاستیکی 7N80 N-CHANEL 800V,7A
Manufacturer:FAIRCHILD Semiconductor
Product Category:MOSFET
RoHS:Details
Technology:Si
Mounting Style:Through Hole
Package / Case:TO-220FP-3
Number of Channels:1 Channel
Transistor Polarity:N-Channel
Vds – Drain-Source Breakdown Voltage:800 V
Id – Continuous Drain Current:6.6 A
Rds On – Drain-Source Resistance:1.9 Ohms
Vgs – Gate-Source Voltage:30 V
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 150 C
Pd – Power Dissipation:56 W
Configuration:Single
Channel Mode:Enhancement
Tradename:QFET
Packaging:Tube
Height:16.07 mm
Length:10.36 mm
Series:FQPF7N80C
Transistor Type:1 N-Channel
Type:MOSFET
Width:4.9 mmBrand:ON Semiconductor / Fairchild
Forward Transconductance – Min:5.5 S
Fall Time:60 ns
Product Type:MOSFET
Rise Time:100 ns
Factory Pack Quantity:1000
Subcategory:MOSFETs
Typical Turn-Off Delay Time:50 ns
Typical Turn-On Delay Time:35 ns
Unit Weight:2G
