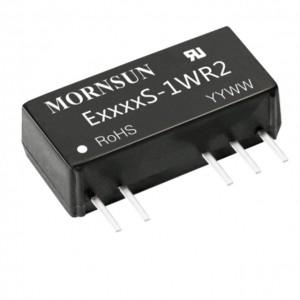

DC TO DC Input24v,out +-12v,1watt Isolation:3000V
Features:
Compact SIP package
Industry standard pin-out
High efficiency up to 81%
I/O isolation test voltage 3k VDC
Operating ambient temperature range: -40°C to +105°C
EN60950, UL60950 approved
Features/Specs:
Part Number: E2412S-1WR2
Supplier: Mornsun
Input Voltage DC: 24 VDC
Output Voltage:12 VDC, -12 VDC
Output Power: 1 W
Current: 40 mA
Ripple: 30 mVpp
Efficiency: 81 %
Number of outputs: 2
Isolation Voltage VDC: 3000 VDC
MTBF: 3500 k Hours
Max operate temperature: +105°C
Min operate temperature: -40°C
Package: DIP
Length: 19.5 mm
Width: 9.3 mm
Height: 6 mm
Weight: 2.40 gm
