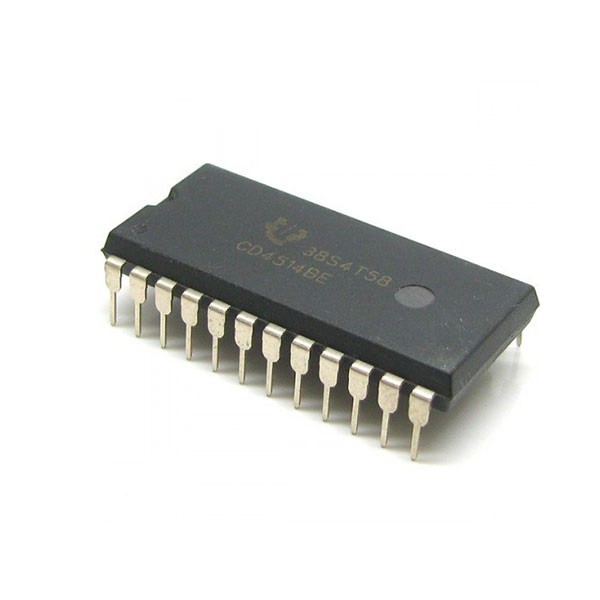

4Bit Latch 4-16 LIN. Decoder
Product Category: Encoders, Decoders, Multiplexers & Demultiplexers Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Product: Decoders / Demultiplexers
Logic Family: CD4000
Number of Bits: 4 bit
Number of Input Lines: 4 Input
Number of Output Lines: 16 Output
Propagation Delay Time: 370 ns
Supply Voltage – Max: 18 V
Supply Voltage – Min: 3 V
Maximum Operating Temperature: + 125 C
Mounting Style: PDIP
Package/Case: DIP-24
Packaging: Tube
Brand: Texas Instruments
Function: Latch/Decoder/Demultiplexer
Height: 2.35 mm
High Level Output Current: – 1.5 mA
Length: 15.4 mm
Logic Type: Decoder
Low Level Output Current: 1.5 mA
Maximum Clock Frequency: 8 MHz
Minimum Operating Temperature: – 55 C
Number of Circuits: 1 Circuit
Operating Supply Voltage: 3 V to 18 V
Operating Temperature Range: – 55 C to + 125 C
Pd – Power Dissipation: 500 mW
Series: CD4515B , HCF4515B , HEF4515B
Factory Pack Quantity: 25
Supply Current – Max: 0.1 mA
Technology: CMOS
Width: 7.52 mm
Unit Weight: 4g
آی سی 4515 شامل یک دیکدر 4 به 16 از خانواده CMOS می باشد.
