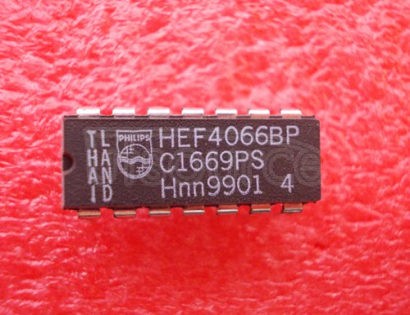

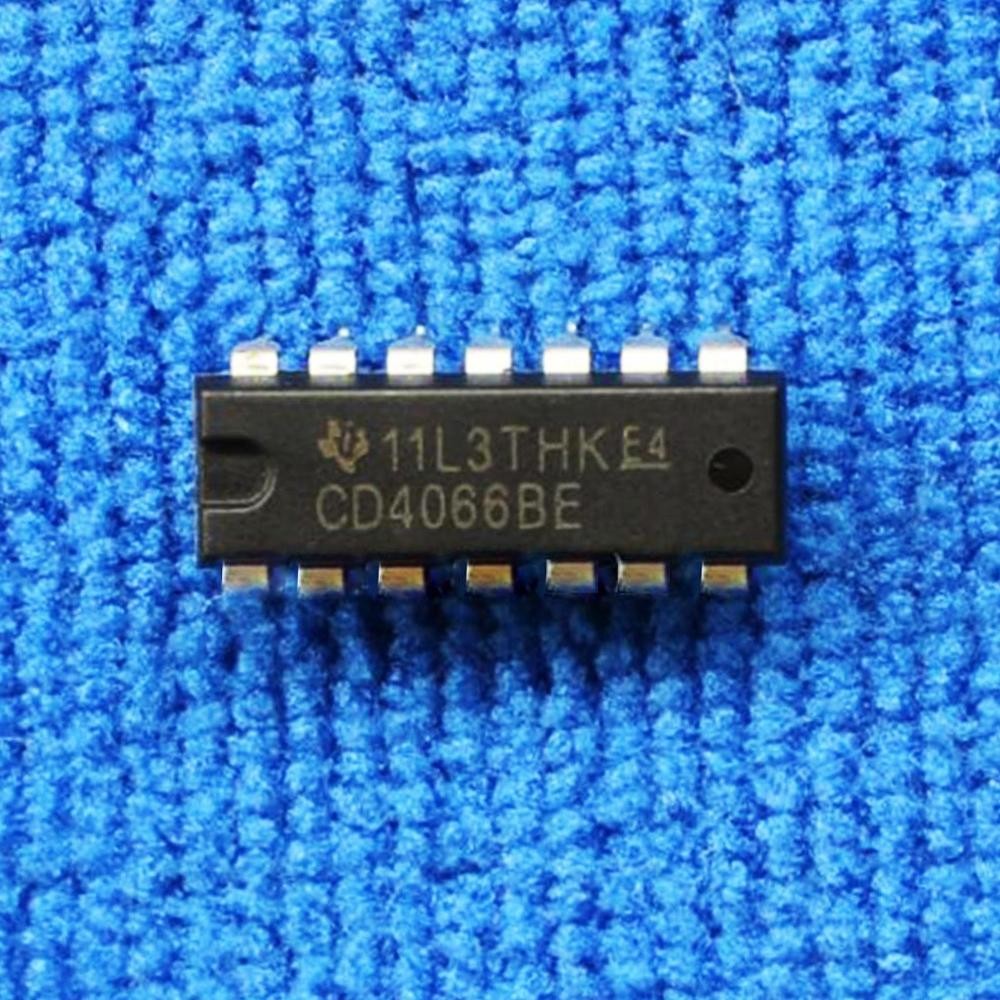

Analoge Signal Swiching/Mux-CMOS
Product Category: Analogue Switch ICs
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Number of Switches: 4 Switch
Configuration: 4 x SPST
On Resistance – Max: 240 Ohms
Switch Voltage – Max: 15 V
On Time – Max: 30 ns
Off Time – Max: 30 ns
Operating Supply Voltage: 3 V to 18 V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-14
Brand: Texas Instruments
Dual Supply Voltage: +/- 7.5 V
Height: 3.3 mm
Length: 19.05 mm
Minimum Operating Temperature: – 55 C
Packaging: Tube
Series: CD4066B, TC4066B , HEF4066B , HCF4066B
Factory Pack Quantity: 25
Supply Current – Max: 5 uA
Supply Type: Single Supply, Dual Supply
Supply Voltage – Max: 18 V
Supply Voltage – Min: 3 V
Width: 6.35 mm
Unit Weight: 1 g
آی سی CD4066B شامل 4 عدد سوییچ آنالوگ با پایه کنترلی می باشد.
نقد و بررسی وجود ندارد.
