Hex Inverter/Buffer-CMOSمشابه با 74HC4049
Product Category: Buffers & Line Drivers Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Number of Input Lines: 6 Input
Number of Output Lines: 6 Output
Polarity: Inverting
Supply Voltage – Max: 20 V
Supply Voltage – Min: – 0.5 V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Packaging: Tube
Brand: Texas Instruments
Function: Buffer/Converter
Height: 4.57 mm
High Level Output Current: – 5.2 mA
Input Signal Type: Single-Ended
Length: 19.3 mm
Logic Family: CD4000
Logic Type: CMOS
Low Level Output Current: 25 mA
Minimum Operating Temperature: – 55 C
Number of Channels: 5
Operating Supply Current: 30 uA
Operating Supply Voltage: 3 V to 18 V
Operating Temperature Range: – 55 C to + 125 C
Output Type: CMOS
Propagation Delay Time: 120 ns at 5 V, 65 ns at 10 V, 50 ns at 15 V
Quiescent Current: 40 nA
Series: CD4049UB , HCF4049UB , HEF4049UB
Factory Pack Quantity: 25
Supply Current – Max: 20 uA
Technology: CMOS
Width: 6.35 mm
Unit Weight: 1 g

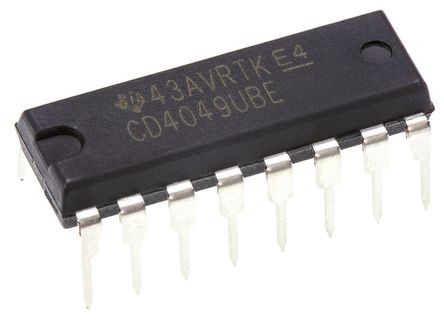

آی سی CD4049UBE شامل شش بافر معکوس کننده می باشد.
