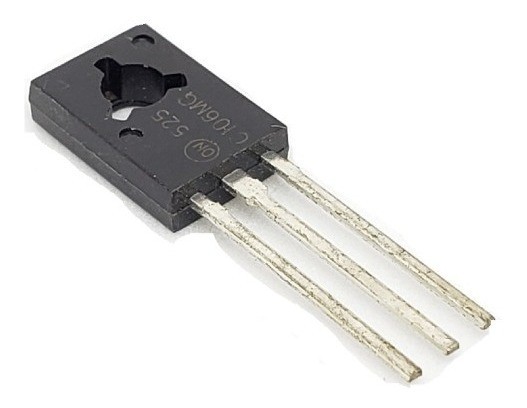

تریستور THYRISTOR,600V,3.2A
Manufacturer:ON Semi
Product Category:SCRs
RoHS:Details
Series:C106
Breakover Current IBO Max:20 A
Rated Repetitive Off-State Voltage VDRM:600 V
Off-State Leakage Current @ VDRM IDRM:10 uA
On-State RMS Current – It RMS:4 A
Vf – Forward Voltage:2.2 V
Maximum Gate Peak Inverse Voltage:6 V
Gate Trigger Voltage – Vgt:800 mV
Gate Trigger Current – Igt:0.2 mA
Holding Current Ih Max:3 mA
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 110 C
Mounting Style:Through Hole
Package / Case:TO-225-3
Packaging:Bulk
Current Rating:2.55 A
Height:11.04 mm
Length:7.74 mm
Type:SCR
Width:2.66 mm
Brand:ON
Non Repetitive On-State Current:20 A
Product Type:SCRs
Factory Pack Quantity:500
Subcategory:Thyristors
Unit Weight:2 g
