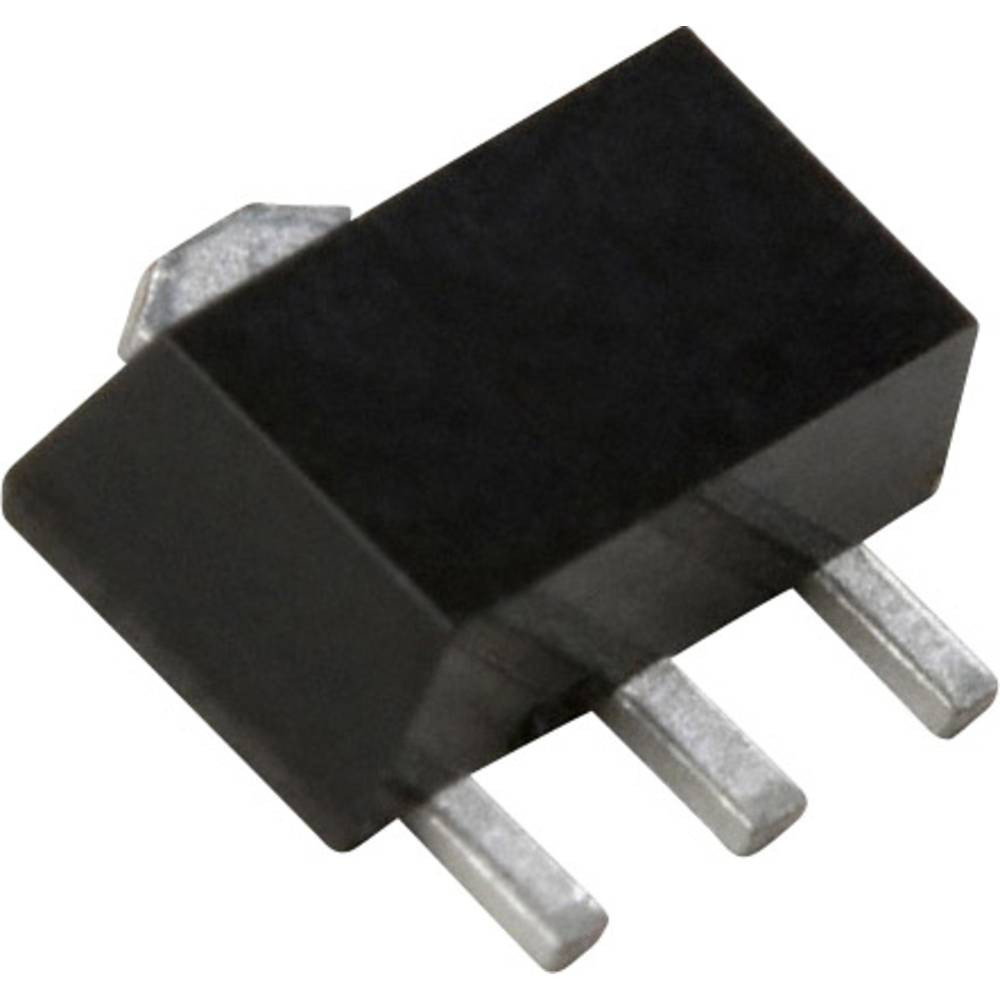

ترانزیستور ماسفت SMD- BSS192 P-CH-250V,190mA,1W
Manufacturer:Infineon
Product Category:MOSFET
RoHS:Details
Technology:Si
Mounting Style:SMD/SMT
Package / Case:PG-SOT-89-3
Number of Channels:1 Channel
Transistor Polarity:P-Channel
Vds – Drain-Source Breakdown Voltage:250 V
Id – Continuous Drain Current:190 mA
Rds On – Drain-Source Resistance:12 Ohms
Vgs th – Gate-Source Threshold Voltage:1 V
Vgs – Gate-Source Voltage:- 10 V
Qg – Gate Charge:- 4.9 nC
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 150 C
Configuration:Single
Pd – Power Dissipation:1 W
Channel Mode:Enhancement
Packaging:Cut Tape
Packaging:MouseReel
Packaging:Reel
Height:1.5 mm
Length:4.5 mm
Series:BSS192
Transistor Type:1 P-Channel
Width:2.5 mm
Brand:Infineon Technologies
Forward Transconductance – Min:190 mS
Fall Time:50 ns
Product Type:MOSFET
Rise Time:5.2 ns
Factory Pack Quantity:1000
Subcategory:MOSFETs
Typical Turn-Off Delay Time:72 ns
Typical Turn-On Delay Time:4.7 ns
Unit Weight:0.5g
