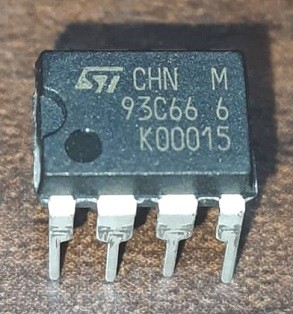

4K-Bit Serial CMOS EEPROM
Product Category: EEPROM
Manufacturer: ON Semiconductor
RoHS: RoHS Compliant Details
Mounting Style: Through Hole
Package/Case: PDIP-8
Memory Size: 4 kbit
Interface Type: Serial, 3-Wire, Microwire
Organisation: 512 x 8, 256 x 16
Data Retention: 100 Year
Maximum Clock Frequency: 1 MHz
Supply Current – Max: 3 mA
Operating Supply Voltage: 3.3 V, 5 V
Maximum Operating Temperature: + 85 C
Series: CAT93C66
Packaging: Tube
Access Time: 250 ns
Brand: ON Semiconductor
Height: 3.3 mm
Length: 9.27 mm
Minimum Operating Temperature: – 40 C
Operating Supply Current: 1 mA
Programming Voltage: 1.8 V to 5.5 V
Factory Pack Quantity: 50
Supply Voltage – Max: 5.5 V
Supply Voltage – Min: 2.5 V
Width: 6.35 mm
Unit Weight: 1 g
آی سی 93C66 یک حافظه E2PROM از نوع CMOS با ظرفیت 4 کیلوبایت و سریال می باشد.
