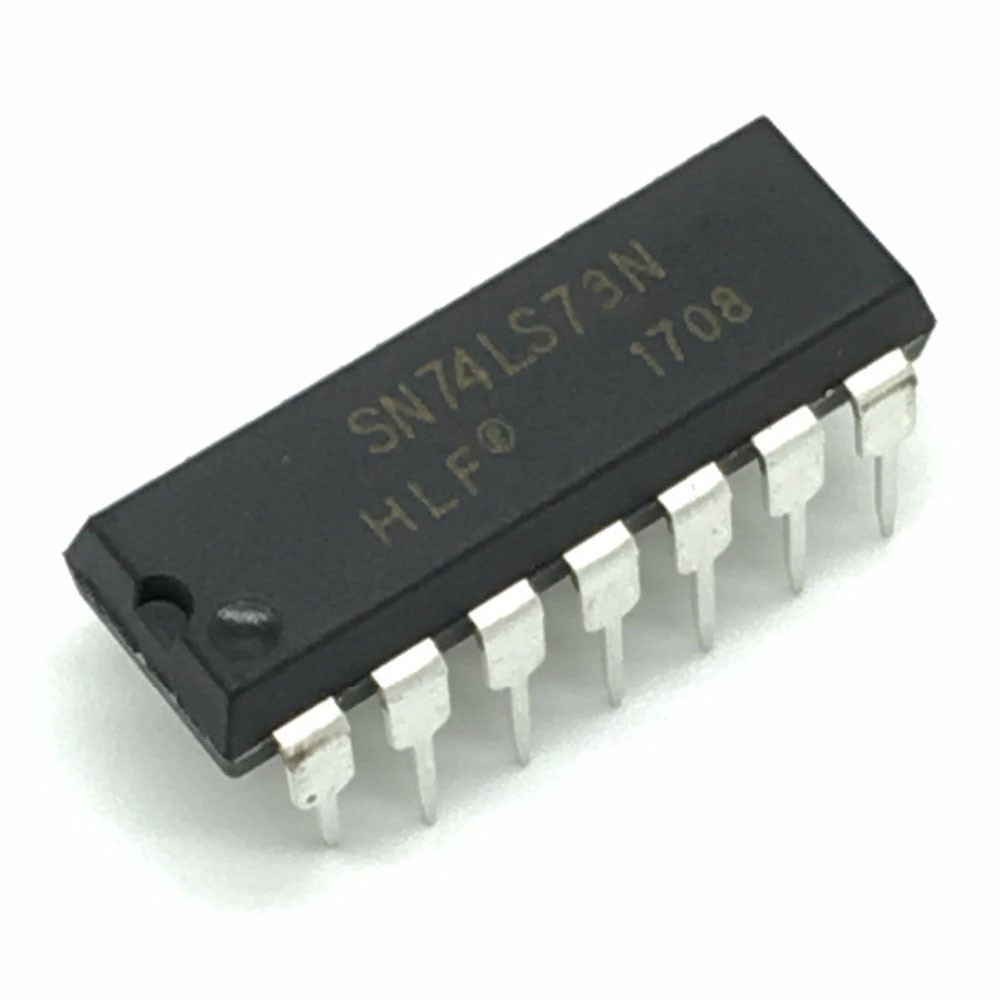

TTL 7473-DUAL J-K F.F W/CLEAR
Product Category: Flip-Flops Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Number of Circuits: 2
Logic Family: LS
Logic Type: J-K Flip-Flop
Polarity: Inverting/Non-Inverting
Input Type: TTL
Output Type: TTL
Propagation Delay Time: 20 ns
High Level Output Current: – 0.4 mA
Low Level Output Current: 8 mA
Supply Voltage – Max: 5.25 V
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package/Case: PDIP-14
Packaging: Tube
Brand: Texas Instruments
Function: JK-Master-Slave Type
Height: 4.57 mm
Length: 19.3 mm
Minimum Operating Temperature: 0 C
Number of Channels: 2
Number of Input Lines: 3
Number of Output Lines: 1
Operating Supply Voltage: 4.75 V to 5.25 V
Operating Temperature Range: 0 C to + 70 C
Reset Type: Reset
Series: SN74LS73A
Factory Pack Quantity: 25
Supply Voltage – Min: 4.75 V
Width: 6.35 mm
Unit Weight: 1 g
آی سی 7473 شامل 2 فلیپ فلاپ نوع J-K می باشد.
