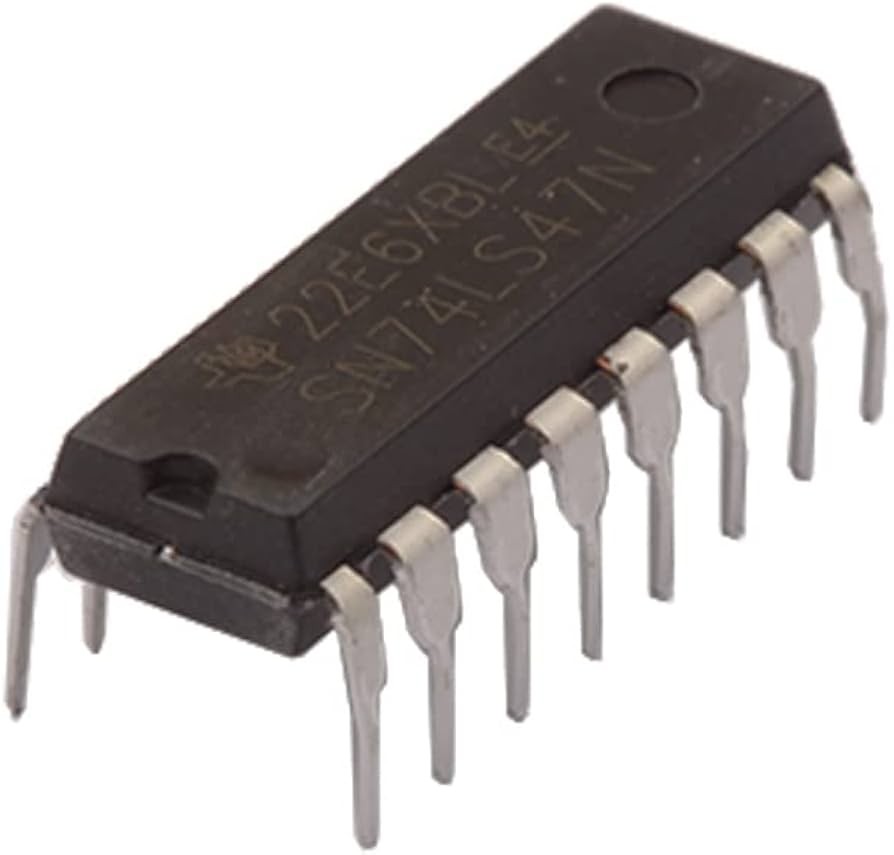

TTL 7447- BCD to 7-Segment Decoder/Driver
Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Product: Decoders / Demultiplexers
Logic Family: LS
Number of Input Lines: 4 Input
Number of Output Lines: 7 Output
Propagation Delay Time: 100 ns
Supply Voltage – Max: 5.25 V
Supply Voltage – Min: 4.75 V
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Packaging: Tube
Brand: Texas Instruments
Function: Decoder/Driver
Height: 4.57 mm
High Level Output Current: – 0.05 mA
Length: 19.3 mm
Logic Type: Decoders/Demultiplexers
Low Level Output Current: 3.2 mA
Maximum Clock Frequency: 35 MHz
Minimum Operating Temperature: 0 C
Number of Circuits: 1 Circuit
Operating Supply Voltage: 5 V
Operating Temperature Range: 0 C to + 70 C
Series: SN74LS47
Factory Pack Quantity: 25
Supply Current – Max: 7 mA
Technology: Bipolar
Width: 6.35 mm
Unit Weight: 1 g
آی سی 7447یک مبدل BCD به سون سگمنت آند مشترک با ورودیهای بافر شده می باشد.
