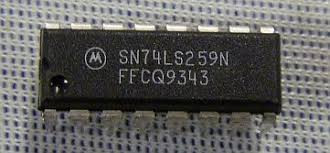

TTL 74259-8-BIT ADDRESSABLE LATCH 1-OF-8 DECODER
Product Category: Latches Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Number of Circuits: 1 Circuit
Logic Type: Serial In/Parallel Out (SIPO) Shift Register
Logic Family: 74LS
Polarity: Non-Inverting
Quiescent Current: 8 uA
Number of Output Lines: 8 Line
High Level Output Current: – 5.2 mA
Low Level Output Current: 32 mA
Propagation Delay Time: 130 ns at 2 V, 26 ns at 4.5 V, 22 ns at 6 V
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: – 40 C
Package/Case: PDIP-16
Packaging: Tube
Brand: Texas Instruments
Function: 8 bit Addressable
Height: 4.57 mm
Length: 19.3 mm
Mounting Style: Through Hole
Number of Channels: 8 Channels
Number of Input Lines: 1 Line
Operating Supply Voltage: 2 V to 6 V
Reset Type: Master Reset
Series: SN74LS259
Factory Pack Quantity: 25
Type: D-Type
Width: 6.35 mm
Unit Weight: 1 g
آی سی 74259یک لچ 8 بیتی با سرعت بالا و قابلیت آدرس دهی می باشد.
