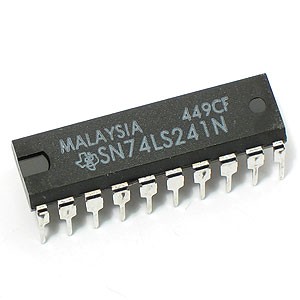

TTL 74241-OCTAL BUFFER/LINE DRIVER 3-ST.
Product Category: Buffers & Line Drivers Manufacturer: Texas Instruments RoHS: RoHS Compliant Details Number of Input Lines: 8 Input Number of Output Lines: 8 Output Polarity: Non-Inverting Supply Voltage – Max: 5.25 V Supply Voltage – Min: 4.75 V Maximum Operating Temperature: + 70 C Mounting Style: Through Hole Package/Case: PDIP-20 Packaging: Tube Brand: Texas Instruments Function: Buffer/Line Driver Height: 4.57 mm High Level Output Current: – 15 mA Input Signal Type: Single-Ended Length: 24.33 mm Logic Family: LS Logic Type: Bipolar Low Level Output Current: 24 mA Minimum Operating Temperature: 0 C Number of Channels: 8 Operating Supply Current: 46 uA Operating Supply Voltage: 4.75 V to 5.25 V Operating Temperature Range: 0 C to + 70 C Output Type: 3-State Propagation Delay Time: 18 ns at 5 V Quiescent Current: 27 mA Series: SN74LS241 Factory Pack Quantity: 20 Supply Current – Max: 46000 uA Technology: Bipolar Width: 6.35 mm Unit Weight: 1,199 g آی سی 74241 شامل هشت عدد بافر(لاین درایور) با خروجی سه حالته می باشد.
