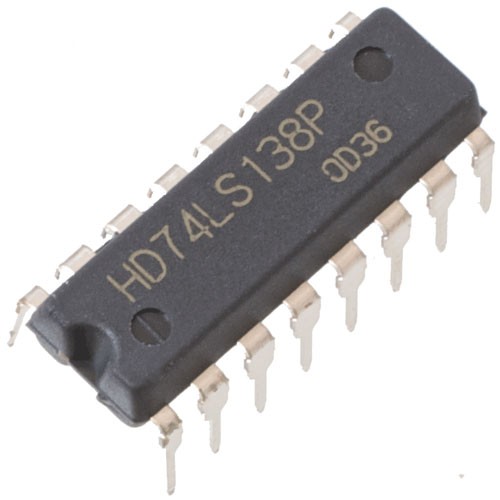

TTL 74138- decoder/demultiplexer
Product Category: Encoders, Decoders, Multiplexers & Demultiplexers Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Product: Decoders / Demultiplexers
Logic Family: LS
Number of Input Lines: 3 Input
Number of Output Lines: 8 Output
Propagation Delay Time: 41 ns
Supply Voltage – Max: 5.25 V
Supply Voltage – Min: 4.75 V
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Packaging: Tube
Brand: Texas Instruments
Function: Decoder/Demultiplexer
Height: 4.57 mm
High Level Output Current: – 0.4 mA
Length: 19.3 mm
Logic Type: Decoders/Demultiplexers
Low Level Output Current: 8 mA
Maximum Clock Frequency: 35 MHz
Minimum Operating Temperature: 0 C
Number of Circuits: Quad
Operating Supply Voltage: 5 V
Operating Temperature Range: 0 C to + 70 C
Pd – Power Dissipation: 1 mW
Series: SN74LS138
Factory Pack Quantity: 25
Supply Current – Max: 6.3 mA
Technology: Bipolar
Width: 6.35 mm
Unit Weight: 1 g
آی سی 74138شامل یک دیکودر/دی مالتی پلکسر 1 به 8 می باشد.
