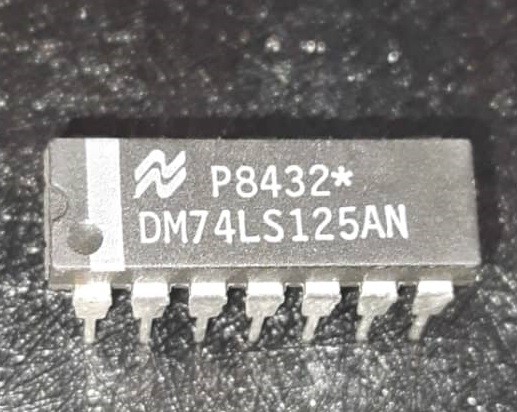

TTL 74125-QUAD BUS BUFFER WITH 3-STATE
Product Category: Buffers & Line Drivers
Manufacturer: National SEMI
RoHS: RoHS Compliant Details
Number of Input Lines: 4 Input
Number of Output Lines: 4 Output
Polarity: Non-Inverting
Supply Voltage – Max: 5.25 V
Supply Voltage – Min: 4.75 V
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package/Case: PDIP-14
Packaging: Tube
Brand: Texas Instruments
Function: Buffer/Line Driver
Height: 3.3 mm
High Level Output Current: – 2.6 mA
Input Signal Type: Single-Ended
Length: 19.05 mm
Logic Family: LS
Logic Type: Bipolar
Low Level Output Current: 24 mA
Minimum Operating Temperature: 0 C
Number of Channels: 4
Operating Supply Current: 62 uA
Operating Supply Voltage: 4.75 V to 5.25 V
Operating Temperature Range: 0 C to + 70 C
Output Type: 3-State
Propagation Delay Time: 18 ns at 5 V
Series: SN74LS125A
Factory Pack Quantity: 25
Technology: Bipolar
Width: 6.35 mm
Unit Weight: 1 g
آی سی 74125شامل 4 عدد بافر سه حالته می باشد
