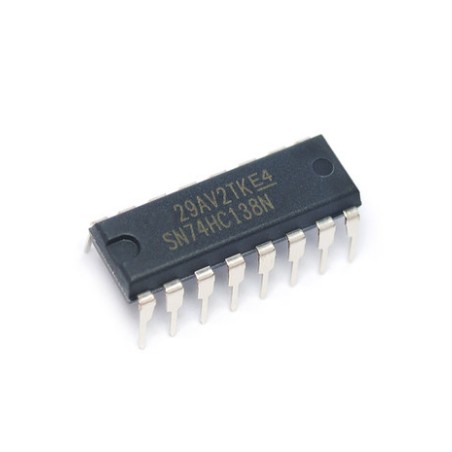

TTL 74138-3-to-8 line decoder/demultiplexer; inverting
Manufacturer: Texas Instruments
PRoduct Category: Encoders, Decoders, Multiplexers & Demultiplexers
RoHS: RoHS Compliant Details
Product: Decoders / Demultiplexers
Logic Family: HC
Number of Input Lines: 3 Input
Number of Output Lines: 8 Output
Propagation Delay Time: 30 ns
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Packaging: Tube
Brand: Texas Instruments
Function: Decoder/Demultiplexer
Height: 4.57 mm
High Level Output Current: – 5.2 mA
Length: 19.3 mm
Logic Type: Decoders/Demultiplexers
Low Level Output Current: 5.2 mA
Maximum Clock Frequency: 28 MHz
Minimum Operating Temperature: – 55 C
Number of Circuits: Dual
Operating Supply Voltage: 2 V to 6 V
Operating Temperature Range: – 55 C to + 125 C
Series: CD74HC138
Factory Pack Quantity: 25
Supply Current – Max: 0.008 mA
Technology: CMOS
Width: 6.35 mm
Unit Weight: 1 g
آی سی 74138شامل یک دیکودر/دی مالتی پلکسر 1 به 8 می باشد.
