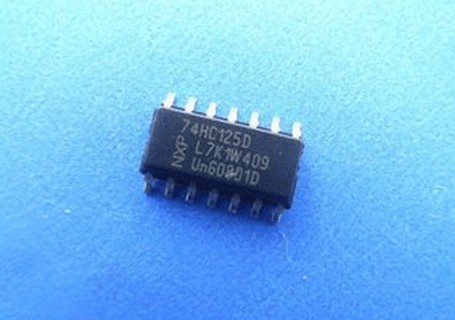

TTL 74125-SMD, QUAD BUS BUFFER WITH 3-STATE
Product Category: Buffers & Line Drivers
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Number of Input Lines: 4 Input
Number of Output Lines: 4 Output
Polarity: Non-Inverting
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: SO-14
Packaging: Tube
Brand: Texas Instruments
Function: Buffer/Line Driver
Height: 3.3 mm
High Level Output Current: – 7.8 mA
Input Signal Type: Single-Ended
Length: 19.05 mm
Logic Family: HC
Logic Type: CMOS
Low Level Output Current: 7.8 mA
Minimum Operating Temperature: – 55 C
Number of Channels: 4
Operating Supply Current: 80 uA
Operating Supply Voltage: 2 V to 6 V
Operating Temperature Range: – 55 C to + 125 C
Output Type: 3-State
Propagation Delay Time: 100 ns at 2 V, 20 ns at 4.5 V, 17 ns at 6 V
Quiescent Current: 8 uA
Series: CD74HC125
Factory Pack Quantity: 25
Supply Current – Max: 8 uA
Technology: CMOS
Width: 6.35 mm
Unit Weight: 0.5 g
آی سی 74125 یک بافر 4 تایی غیر معکوس کننده می باشد.
